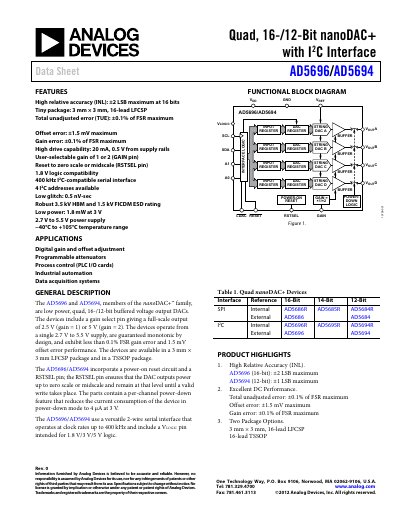

ANALOG DEVICES AD5696/AD5694: Quad 16-/12-Bit nanoDAC with I2C Interface Data Sheet (Rev 0 2012-07-24-)
The AD5696 and AD5694 are low power, quad, 16-/12-bit buffered voltage output DACs from Analog Devices. These devices include a gain select pin providing full-scale outputs of either 2.5 V or 5 V, depending on the configuration. They operate from a single supply ranging from 2.7 V to 5.5 V and are guaranteed monotonic by design.
Read onlineAnalog Devices AD569 specifications
| Resolution (AD5696) | 16 Bits |
|---|---|
| Resolution (AD5694) | 12 Bits |
| Relative Accuracy (INL) AD5696 | +2 LSB maximum at Gain=2 |
| Total Unadjusted Error | +0.1% of FSR maximum |
| Offset Error | +1.5 mV maximum |
| Gain Error | +0.1% of FSR maximum |
| Power Supply Range | 2.7 V to 5.5 V |
| Temperature Range | -40°C to +105°C |
| Interface Speed | Up to 400 kHz |
All Analog Devices AD569 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum relative accuracy for the AD5696?
The maximum relative accuracy (INL) for the AD5696 is +2 LSB.
What are the available package options?
The devices are available in a 3 mm x 3 mm LFCSP package and in a TSSOP package.
What supply voltage range does the AD5694R support?
The device operates from 2.7 V to 5.5 V.
From: Analog Devices AD5694R Quad 12‑Bit nano DAC+ Data Sheet
What is the temperature coefficient of the internal reference?
The internal 2.5 V reference has a typical temperature coefficient of 2 ppm/°C.
From: Analog Devices AD5694R Quad 12‑Bit nano DAC+ Data Sheet
What is the resolution of the AD569?
The AD569 provides a 16‑bit resolution.
How fast does the AD569 settle to 0.001 % of full scale?
Typical settling time is 3 ps.
