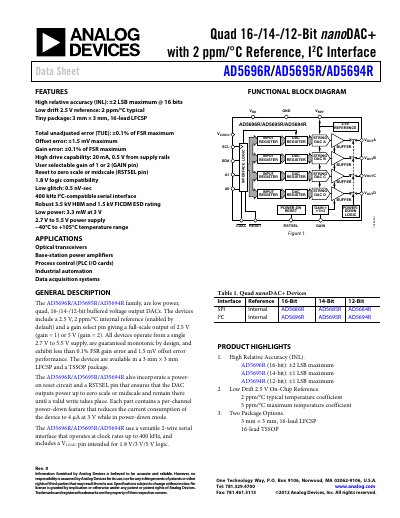

This document describes a 16-/14-/12-bit quad nanoDAC+ product with a 2 ppm/°C reference and I2C interface. The product features high relative accuracy, low drift, and a small package size.
The AD5694R is a low‑power, quad, 12‑bit buffered voltage‑output DAC that includes an internal 2.5 V reference with a typical temperature coefficient of 2 ppm/°C. It operates from a single 2.7 V to 5.5 V supply, offers selectable gain of 1 or 2, and provides up to 20 mA output drive per channel.
Typical applications include optical transceivers, base‑station power amplifiers, process control I/O cards, industrial automation and data‑acquisition systems. The device is offered in a 3 mm × 3 mm 16‑lead LFCSP or a 16‑lead TSSOP package and features power‑down modes to reduce current consumption to a few microamps.
| Resolution | 12 bits |
|---|---|
| Supply Voltage Range | 2.7 V to 5.5 V |
| Reference Temperature Coefficient | 2 ppm/°C typical |
| Power Consumption (typical) | 3.3 mW at 3 V |
| Gain Error | ±0.1 % of FSR |
| Output Drive Capability | 20 mA, 0.5 V from supply rails |
| Maximum Output Current per Channel | ±30 mA (combined per pair) |
The device operates from 2.7 V to 5.5 V.
The internal 2.5 V reference has a typical temperature coefficient of 2 ppm/°C.
Each channel can source or sink up to about 30 mA when two channels are combined.
Typical power consumption is 3.3 mW at a 3 V supply.
