This document describes the features and characteristics of Philips Semiconductors' BT136 series of triacs, including glass passivated package, bidirectional transient and blocking voltage capability, and high thermal cycling performance. It is suitable for applications requiring high voltage capability and thermal cycling performance, such as motor control, industrial and domestic lighting, heating, and static switching.

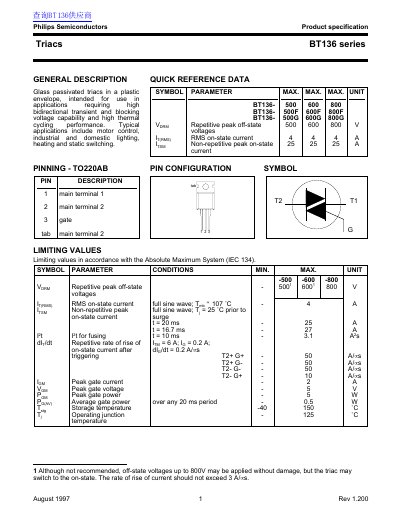

This document is a product specification datasheet for the Philips BT136 series of triacs. These glass passivated devices are designed for applications requiring high voltage capability and high thermal cycling performance, such as motor control, industrial lighting, and static switching.
| Package Type | TO220AB |
|---|---|
| Maximum Off-State Voltage | 600 V |
| Maximum On-State Current | 4 A |
| Maximum Non-Repetitive Peak Current | 25 A |
| Operating Junction Temperature | 125 °C |
| Storage Temperature | -40 to 150 °C |
| Net Mass | 2 g |
The maximum gate trigger current (IGT) is 50 mA under typical conditions.
The typical on-state voltage (VT) is 1.70 V when the on-state current is 5 A.
