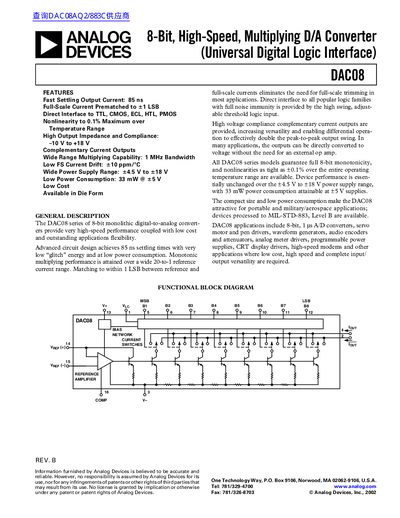

Analog Devices DAC08 High-Speed Multiplying D/A Converter Datasheet
The DAC08 is an 8-bit monolithic digital-to-analog converter designed for high-speed performance coupled with low cost. It features a universal digital logic interface compatible with TTL, CMOS, ECL, HTL, and PMOS families, ensuring full noise immunity across various applications.
Key characteristics include fast settling output current of 85 ns, monotonicity over the entire operating temperature range, and wide voltage compliance from –10 V to +18 V. The device is available in multiple packages including Cerdip, Plastic DIP, LCC, and SO, with options for military/aerospace standards.
Analog Devices DAC08 specifications
| Resolution | 8 Bits |
|---|---|
| Nonlinearity (NL) | ±0.1% to ±0.39% FS |
| Settling Time (To ±1/2 LSB) | 85 ns to 150 ns |
| Logic Interface | TTL, CMOS, ECL, HTL, PMOS |
Source: Analog Devices DAC08 High-Speed Multiplying D/A Converter Datasheet
All Analog Devices DAC08 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the settling time of the DAC08?
The typical settling time to ±1/2 LSB with all bits switched ON or OFF is 85 ns.
From: Analog Devices DAC08 High-Speed Multiplying D/A Converter Datasheet
What logic families does the DAC08 interface directly?
It provides direct interface to TTL, CMOS, ECL, HTL, and PMOS.
From: Analog Devices DAC08 High-Speed Multiplying D/A Converter Datasheet
What is the settling time of the DAC08?
The device achieves a fast settling output current of 85 ns.
From: Analog Devices DAC08 8-Bit High-Speed Multiplying D/A Converter Datasheet
Is full-scale trimming required for most applications?
No, matching to within 1 LSB between reference and full-scale currents eliminates the need for full-scale trimming.
From: Analog Devices DAC08 8-Bit High-Speed Multiplying D/A Converter Datasheet
What is the settling time of the DAC08?
The DAC08 series achieves 85 ns settling times with very low glitch energy.
From: Analog Devices DAC08 Series 8-Bit High Speed Multiplying D/A Converter Datasheet
Which logic families does the DAC08 interface directly with?
It provides a direct interface to TTL, CMOS, ECL, HTL, and PMOS logic families.
From: Analog Devices DAC08 Series 8-Bit High Speed Multiplying D/A Converter Datasheet
