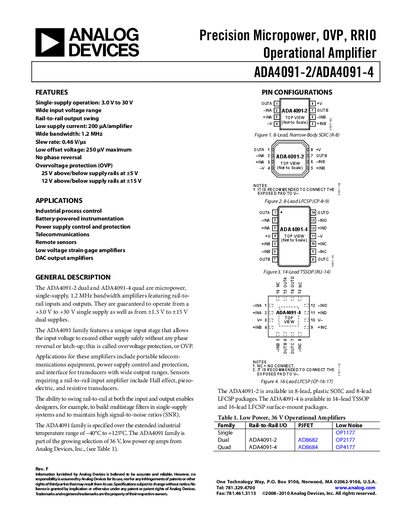

Analog Devices ADA4091-2/ADA4091-4 Datasheet
The ADA4091-2 dual and ADA4091-4 quad are micropower, single‑supply operational amplifiers with rail‑to‑rail inputs and outputs. They feature overvoltage protection, low supply current (200 pA/amplifier), a 1.2 MHz bandwidth, 0.46 V/µs slew rate, and a 250 pV maximum offset voltage.
Both devices are offered in surface‑mount packages: the ADA4091-2 in 8‑lead SOIC and 8‑lead LFCSP, and the ADA4091-4 in 14‑lead TSSOP and 16‑lead LFCSP. They are specified for an industrial temperature range of –40 °C to +125 °C. The datasheet includes pin configurations, electrical specifications, absolute maximum ratings, thermal resistance data, and typical performance characteristics.
Analog Devices ADA4091-2 specifications
| Supply voltage range (single‑supply) | 3.0 V to 30 V |
|---|---|
| Supply current per amplifier | 200 µA typical, 300 µA max |
| Slew rate | 0.46 V/µs |
| Gain‑bandwidth product | 1.22 MHz |
| Input offset voltage (typical) | ±250 pV |
| Power‑supply rejection ratio (PSRR) | 108 dB to 126 dB |
| Output voltage high (ADA4091-4, 100 kΩ load) | ≈4.99 V |
| Maximum supply voltage (absolute rating) | 36 V |
All Analog Devices ADA4091-2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the ADA4091-2 support?
It operates from a single supply of 3.0 V to 30 V (or from +1.5 V to +15 V with dual supplies).
How much overvoltage protection does the device provide?
The OVP allows input voltage up to 25 V above or below the supply rails at a 5 V supply, and 12 V above or below at a 15 V supply.
What supply voltage range does the ADA4091-2 support?
It can operate from a single supply of 3 V up to 36 V, or from dual supplies of ±15 V.
In which package is the ADA4091-2 offered?
It is offered in an 8‑lead narrow‑body SOIC (R‑8) package.
