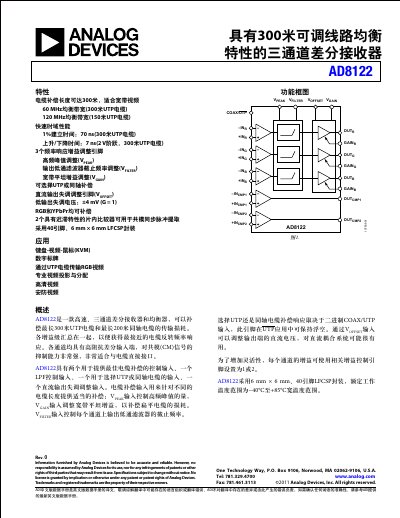

Analog Devices AD8122 Three-Channel Differential Receiver and Equalizer Datasheet
The AD8122 from Analog Devices provides high‑speed three‑channel differential reception and equalization for video and KVM applications. It offers adjustable control voltages for high‑frequency peak (VPEAK), broadband flat gain (VGAIN), low‑pass filter cutoff (VFILTER) and DC offset (VOFFSET), allowing compensation of long cable runs.
The device is supplied in a 40‑pin 6 mm × 6 mm LFCSP package and operates over a wide temperature range (‑40 °C to +85 °C). Its specifications include up to 300 m UTP or 200 m coaxial cable compensation, 60 MHz–120 MHz bandwidth depending on cable length, and low output offset voltages. This manual is written in Chinese.
Analog Devices AD8122 specifications
| Cable compensation length (UTP) | up to 300 m |
|---|---|
| Cable compensation length (coax) | up to 200 m |
| Bandwidth (UTP 300 m) | 60 MHz |
| Bandwidth (UTP 150 m) | 120 MHz |
| Supply voltage range | ±4.5 V to ±5.5 V |
| Operating temperature range | -40 °C to +85 °C |
| Output voltage swing | -3.9 V to +3.9 V |
Source: Analog Devices AD8122 Three-Channel Differential Receiver and Equalizer Datasheet
All Analog Devices AD8122 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What package does the AD8122 use?
It is packaged in a 40‑pin 6 mm × 6 mm LFCSP.
From: Analog Devices AD8122 Three-Channel Differential Receiver and Equalizer Datasheet
What is the maximum cable length this device compensates for?
The AD8122 compensates for transmission losses in UTP and coaxial cables up to 300 meters in length.
Can this device be used with both RGB and YPbPr signals?
Yes, the AD8122 can compensate for both RGB and YPbPr video signals.
