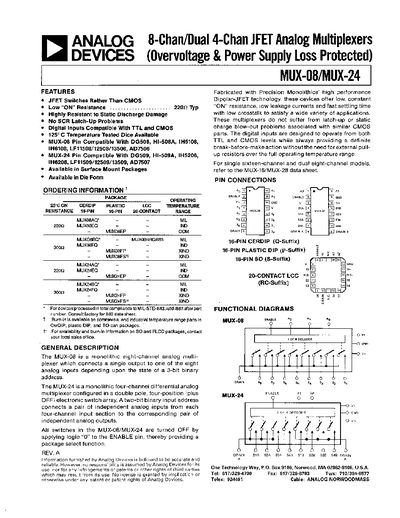

Analog Devices MUX-08/MUX-24 Products Handbook Rev A
The MUX-08 is an 8‑channel JFET analog multiplexer and the MUX-24 is a 4‑channel differential version. Both devices use JFET switches, offer low ON resistance, high static‑discharge immunity, and are compatible with TTL and CMOS digital inputs. They are available in surface‑mount, die, and several through‑hole packages.
The handbook lists absolute maximum ratings, detailed electrical characteristics (supply voltage, input voltage range, leakage currents, switching times, crosstalk, isolation), and typical performance curves for all grades. Package options, ordering information, and over‑voltage/power‑loss test data are also included.
Analog Devices MUX-08 specifications
| Supply Voltage Range (V+ to V‑) | 36 V |
|---|---|
| Analog Input Voltage Range | V‑ Supply –20 V to V+ Supply +20 V |
| Maximum Junction Temperature | 150 °C |
| "ON" Resistance (typical) | ≈10 Ω |
Source: Analog Devices MUX-08/MUX-24 Products Handbook Rev A
All Analog Devices MUX-08 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the MUX‑08/MUX‑24?
The devices can operate with a supply voltage up to 36 V between V+ and V‑.
What analog input voltage range does the MUX‑08 support?
The analog input can swing from –20 V (V‑ supply) to +20 V (V+ supply).
