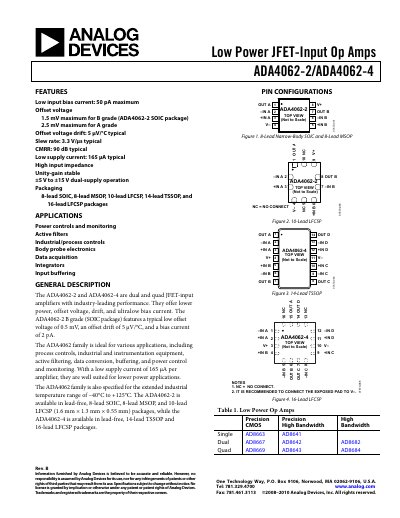

Analog Devices ADA4062-2/ADA4062-4 Low Power JFET-Input Op Amps Datasheet
The ADA4062‑2 (dual) and ADA4062‑4 (quad) are JFET‑input operational amplifiers designed for low power consumption and precision performance. They are suited for power‑control monitoring, active filtering, industrial/process controls, data acquisition, and buffering applications.
Key specifications include a typical input bias current of 50 pA, offset voltage as low as 1.5 mV (B‑grade), slew rate of 3.3 V/µs, CMRR of 90 dB, and supply current of 165 µA per amplifier. The devices operate from ±4 V to ±18 V supplies and are rated for –40 °C to +125 °C. Available in 8‑lead SOIC, 8‑lead MSOP, 10‑lead LFCSP, 14‑lead TSSOP, and 16‑lead LFCSP packages.
Analog Devices ADA4062-2 specifications
| Input Bias Current (typical) | 50 pA |
|---|---|
| Offset Voltage (B‑grade, typical) | 1.5 mV |
| Slew Rate (typical) | 3.3 V/µs |
| CMRR (typical) | 90 dB |
| Operating Temperature Range | −40 °C to +125 °C |
Source: Analog Devices ADA4062-2/ADA4062-4 Low Power JFET-Input Op Amps Datasheet
All Analog Devices ADA4062-2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical input bias current of the ADA4062‑2/‑4?
The typical input bias current is 50 pA.
From: Analog Devices ADA4062-2/ADA4062-4 Low Power JFET-Input Op Amps Datasheet
Which package options are available for the ADA4062‑2 and ADA4062‑4?
Available packages include 8‑lead SOIC, 8‑lead MSOP, 10‑lead LFCSP, 14‑lead TSSOP, and 16‑lead LFCSP.
From: Analog Devices ADA4062-2/ADA4062-4 Low Power JFET-Input Op Amps Datasheet
What is the maximum input bias current of the ADA4062-2?
The maximum input bias current is 50 pA.
What is the typical slew rate of the ADA4062-2?
The typical slew rate is 3.3 V/ps.
