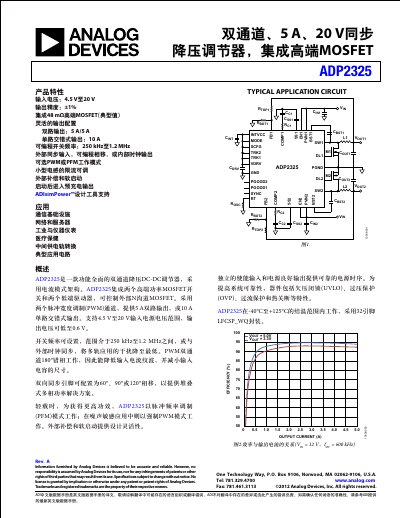

Analog Devices ADP2325 DC-DC Regulator Datasheet
The ADP2325 is a fully featured dual‑channel buck regulator that integrates high‑performance MOSFETs and low‑side drivers, allowing external N‑channel MOSFET control. It supports an input range of 4.5 V to 20 V and can deliver up to 5 A per channel (10 A in interleaved mode) with output voltages as low as 0.6 V.
The device offers programmable switching frequency (250 kHz‑1.2 MHz), optional PWM or PFM operation, external synchronization, and a range of protection features such as UVLO, OVP, over‑current and thermal shutdown. It is supplied in a 32‑pin LFCSP_WQ package and operates from –40 °C to +125 °C.
Analog Devices ADP2325 specifications
| Input voltage range | 4.5 V to 20 V |
|---|---|
| Maximum output current per channel | 5 A |
| Switching frequency range | 250 kHz to 1.2 MHz |
| Operating temperature range | –40 °C to +125 °C |
| Package | 32‑pin LFCSP_WQ |
All Analog Devices ADP2325 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the ADP2325?
The regulator accepts an input voltage from 4.5 V up to 20 V.
How much output current can each channel provide?
Each channel can deliver up to 5 A, or 10 A when operated in interleaved mode.
