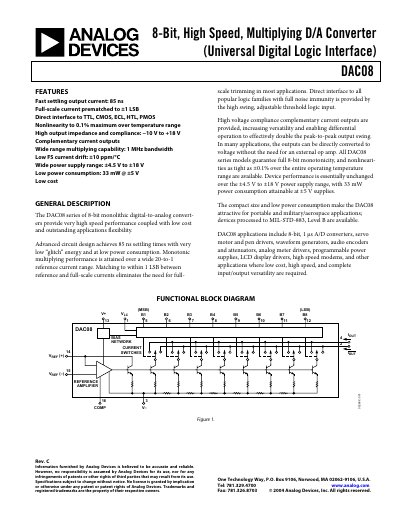

This document introduces the features and characteristics of the 8-bit high-speed multiplying D/A converter DAC08.
The DAC08 series is an 8‑bit monolithic digital‑to‑analog converter offering very high speed performance, low cost, and a wide range of input logic compatibility. It features fast settling (85 ns), low power consumption (33 mW @ ±5 V), and high output voltage compliance (‑10 V to +18 V), making it suitable for portable, military, and aerospace applications.
The document includes detailed specifications, electrical characteristics, absolute maximum ratings, pin‑out diagrams, test and burn‑in circuits, typical performance graphs, outline dimensions, and an ordering guide for the various package options.
| Resolution | 8 bits |
|---|---|
| Settling Time | 85 ns |
| Full‑Scale Current Drift | ±10 ppm/°C |
| Output Voltage Compliance | ‑10 V to +18 V |
| Power Supply Range | ±4.5 V to ±18 V |
| Power Consumption | 33 mW @ ±5 V |
The DAC08 typically settles in 85 ns.
It operates from ±4.5 V up to ±18 V.
The output can swing from ‑10 V to +18 V.
The converter provides an 8‑bit resolution.
