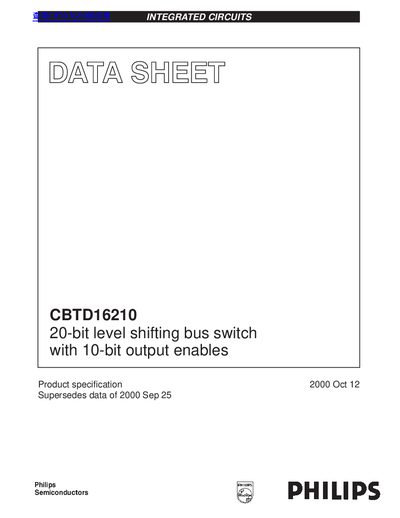

PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook
The Philips CBTD16210 is a high-speed TTL-compatible bus switch that provides 20 bits of switching capability. It is specifically designed for level shifting applications between 5.5 V inputs and 3.3 V outputs. The device features an integrated diode to Vcc to facilitate this voltage translation.
Read onlinePhilips CBTD16210 specifications
| Number of bits | 20 bits |
|---|---|
| Output enables | 10-bit |
| Operating temperature range | -40°C to +85°C |
| Supply voltage range | 4.5 V to 5.5 V |
| Package options | SSOP and TSSOP |
Source: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook
All Philips CBTD16210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the CBTD16210?
It provides 20 bits of high-speed TTL-compatible bus switching with level shifting capabilities.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook
Can the device be used as two separate switches?
Yes, it can be used as two 10-bit bus switches or as one 20-bit bus switch.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook
What voltage levels does the CBTD16210 support?
The device is designed for level shifting applications between 5.5 V inputs and 3.3 V outputs.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook(1)
How can the CBTD16210 be configured?
It can be used as two separate 10-bit bus switches or as one single 20-bit bus switch.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables handbook(1)
What are the nominal working voltage limits for this series?
The nominal working voltages range from 2.4 V to 75 V.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables datasheet
What is the maximum continuous forward current?
The maximum continuous forward current is 400 mA.
From: PHILIPS CBTD16210 20-bit level shifting bus switch with 10-bit output enables datasheet
