This document is a product specification for the BZV90 series voltage regulator diodes, describing their features and characteristics. The BZV90 series voltage regulator diodes have a maximum power dissipation of 1500mW, tolerance series of approximately ±5%, working voltage range of 2.4 to 75V, and maximum non-repetitive peak reverse power dissipation of 40W. They are suitable for general regulation functions.

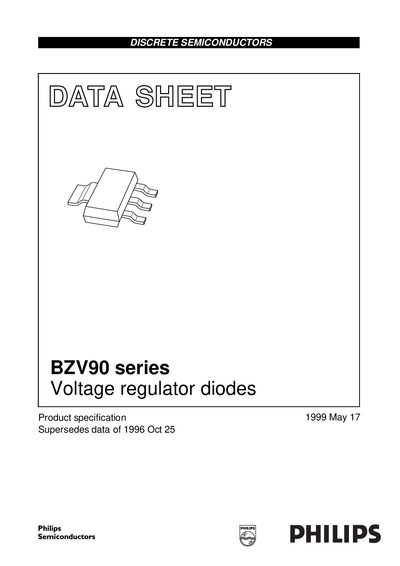

This document is a product specification datasheet for the Philips BZV90 series of voltage regulator diodes. The components are designed as medium-power devices available in SOT223 plastic surface-mount device (SMD) packages.
The series includes 37 types with nominal working voltages ranging from 2.4 V to 75 V, covering the normalized E24 tolerance range of approximately +5%. Key specifications include a maximum continuous forward current of 400 mA and a total power dissipation limit of 1500 mW when mounted on an FR4 double-sided copper-clad printed circuit board.
| Max. Power Dissipation (Prot) | 1500 mW |
|---|---|
| Working Voltage Range | 2.4 to 75 V |
| Tolerance Series | approx. +5% |
| Continuous Forward Current (Ir) | 400 mA |
| Storage Temperature (Tstg) | -65 to +150 °C |
| Junction Temperature (Tj) | 150 °C |
The nominal working voltages range from 2.4 V to 75 V.
The maximum continuous forward current is 400 mA.
