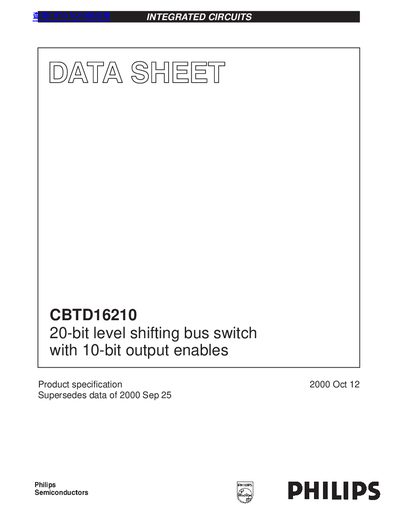

CBTD16210 is a 20-bit level shifting bus switch with 10-bit output enables. It is designed for level shifting applications from 5.5V to 3.3V.
The Philips CBTD16210 is an integrated circuit providing high-speed TTL-compatible bus switching. It features a diode to Vcc that allows for level shifting between 5V inputs and 3.3V outputs, making it suitable for dual 10-bit or single 20-bit configurations.
The device operates over a temperature range of -40°C to +85°C and is available in SSOP and TSSOP packages. It includes separate output-enable (OE) inputs for each port section, allowing independent control of the connection between Port A and Port B.
| Number of bits | 20-bit |
|---|---|
| Output enables | 10-bit output enables |
| Operating temperature range | -40°C to +85°C |
| Supply voltage (Vcc) | 4.5 V to 5.5 V |
| Package options | SSOP and TSSOP |
The device is designed for level shifting applications between 5.5 V inputs and 3.3 V outputs.
It can be used as two separate 10-bit bus switches or as one single 20-bit bus switch.
