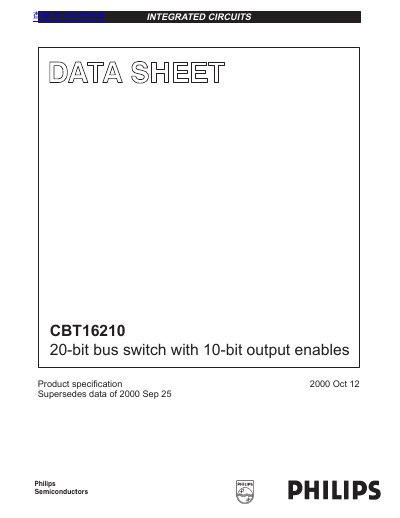

Philips CBT16210 20-bit Bus Switch with 10-bit Output Enables Datasheet
The Philips CBT16210 is a high-speed TTL-compatible bus switch providing 20 bits of switching capability. It is organized as a dual 10-bit bus switch with separate output-enable (OE) inputs, allowing it to function as two 10-bit switches or one 20-bit switch. When the OE input is low, the associated port is connected to the other port; when high, the switch is open, creating a high-impedance state.
Read onlinePhilips CBT16210 specifications
| Number of bits | 20-bit |
|---|---|
| Operating temperature range | -40°C to +85°C |
| Package options | SSOP and TSSOP |
| ESD protection (CDM) | 1000 V |
| ESD protection (HBM) | 2000 V |
Source: Philips CBT16210 20-bit Bus Switch with 10-bit Output Enables Datasheet
All Philips CBT16210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How is the CBT16210 organized?
It is organized as a dual 10-bit bus switch with separate output-enable (OE) inputs.
From: Philips CBT16210 20-bit Bus Switch with 10-bit Output Enables Datasheet
What happens when OE is low?
When OE is low, the associated 10-bit bus switch is on, connecting port A to port B.
From: Philips CBT16210 20-bit Bus Switch with 10-bit Output Enables Datasheet
What is the supply voltage range for the CBT16210?
The DC supply voltage rating is –0.5 V to +7.0 V.
From: PHILIPS CBT16210 20-bit bus switch with 10-bit output enables datasheet
How many bits of bus switching does the CBT16210 provide?
It provides 20 bits of bus switching, organized as two 10‑bit switches.
From: PHILIPS CBT16210 20-bit bus switch with 10-bit output enables datasheet
