BT136X series E sensitive gate triacs product specification, this triac has high sensitivity, can be used for general purpose bidirectional switching and phase control applications

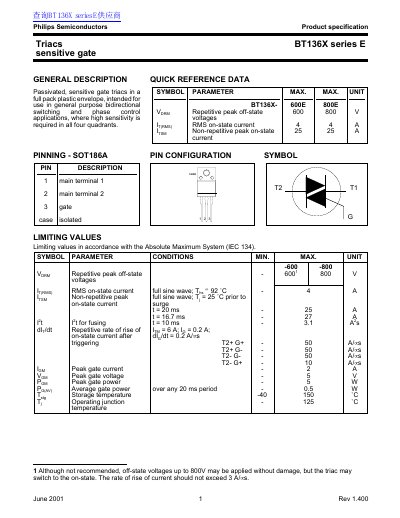

This document is a product specification datasheet for the Philips Semiconductors BT136X series E triacs. These are passivated, sensitive gate devices intended for general purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.
The datasheet provides comprehensive electrical characteristics including limiting values, static parameters such as gate trigger current and voltage, dynamic characteristics like turn-on time, and thermal resistances. It also includes mechanical data with dimensions for the SOT186A package.
| Package type | SOT186A |
|---|
The peak gate current (Ion) must not exceed 2 A.
The maximum storage temperature is 150 °C.
