Quick reference data for BT136X series D logic level triacs, including repetitive peak off-state voltage, RMS on-state current, non-repetitive peak on-state current and other technical parameters.

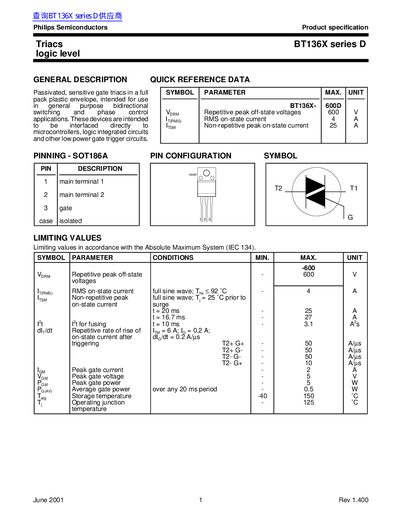

This document is a product specification datasheet for the Philips BT136X series D triacs. These are passivated, sensitive gate triacs in a full pack plastic envelope (SOT186A), designed for general purpose bidirectional switching and phase control applications. They are intended to be interfaced directly to microcontrollers, logic integrated circuits, and other low power gate trigger circuits.
| Repetitive peak off-state voltages | 600 V |
|---|---|
| RMS on-state current | 4 A |
| Non-repetitive peak on-state current | 25 A |
The device supports a maximum repetitive peak off-state voltage of 600 V.
The maximum RMS on-state current is rated at 4 A.
The average gate power limit is 0.5 W over any 20 ms period.
