This document is a Philips semiconductor product specification that introduces the BT136X series of thyristors, including rated voltage, rated current, and package type.

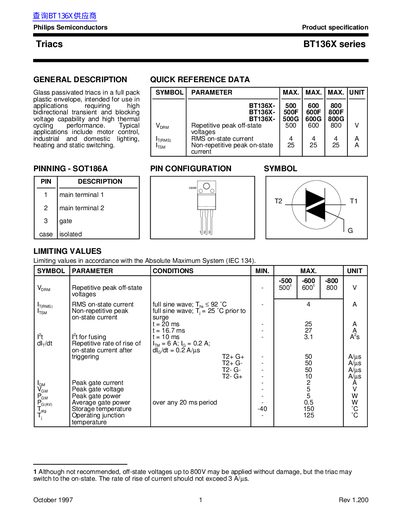

This document is a product specification sheet for the BT136X series of triacs manufactured by Philips Semiconductors. The devices are glass passivated in a full plastic envelope (SOT186A) designed for applications requiring high bidirectional transient and blocking voltage capability along with high thermal cycling performance.
Typical application areas include motor control, industrial and domestic lighting, heating, and static switching. The datasheet provides comprehensive data including limiting values, isolation characteristics, thermal resistances, static and dynamic electrical parameters, and mechanical dimensions.
| Package Type | SOT186A |
|---|---|
| Operating Junction Temperature (Max) | 125 °C |
| Storage Temperature Range | -40 to 150 °C |
| Peak Gate Power (Max) | 5 W |
The maximum operating junction temperature (Tj) is 125 °C.
The maximum RMS on-state current is 4 A.
