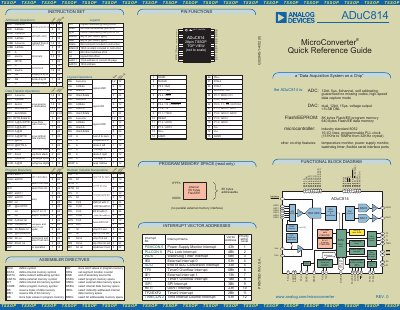

Analog Devices ADuC814 MicroConverter Quick Reference Guide
The ADuC814 MicroConverter Quick Reference Guide gives developers a concise overview of the device’s architecture, including the 8052‑compatible core, programmable PLL, and on‑chip peripherals. It lists the complete instruction set, pin assignments, interrupt vectors, and special function registers needed for low‑level programming.
Key features highlighted are a 12‑bit ADC with six channels, dual 12‑bit DACs, 8 KB Flash/EE program memory, 640 B data memory, 256 × 8 b user RAM, 16 I/O lines, temperature and power‑supply monitors, and a watchdog timer. The guide also shows the functional block diagram and memory map for quick reference during hardware design and firmware development.
Analog Devices ADUC814 specifications
| ADM1032 Package Type | 8-lead mini small outline package (MSOP) |
|---|---|
| Temperature Unit | centigrade |
| HyperTerminal Baud Rate | 9600 baud |
Source: Analog Devices AN-661 ADuC814 to ADM1032 Interface Application Note
All Analog Devices ADUC814 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Disassembly, diagnostics and part numbers, for repair.
How to use the product for one specific task, with worked examples.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What are the branding identifiers for the ADuC814 covered by this errata sheet?
The document applies to material branded with First Line: ADuC814, Second Line: XRU (where X is A or B), and Third Line: D20.
What happens to the Time Interval Counter if the part is in 24 hour mode and a reset occurs?
If the part is in 24 hour mode (TIMECON.6 = 1), this bit will be cleared after any reset event, causing the part to count in 255 hour mode instead.
How many wires are required for the ADuC814 to ADM1032 interface?
The interface involves only two wires, SCLK and SDATA.
From: Analog Devices AN-661 ADuC814 to ADM1032 Interface Application Note
In what unit is the temperature data returned by the ADM1032?
The temperature data is returned in centigrade by default.
From: Analog Devices AN-661 ADuC814 to ADM1032 Interface Application Note
Can the Time Interval Counter wake the device from powerdown?
Yes, the TIC can remain active during powerdown and generate an interrupt to wake up the MicroConverter.
From: Analog Devices MicroConverter Time Interval Counter Application Note
Which MicroConverter parts include the Time Interval Counter?
The TIC is present on the ADuC814, ADuC816, ADuC824, ADuC831, ADuC832, and ADuC834.
From: Analog Devices MicroConverter Time Interval Counter Application Note
