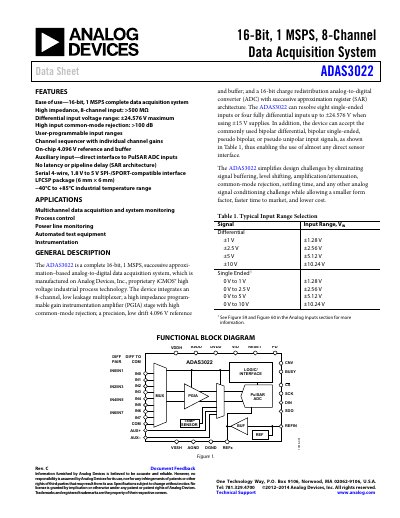

Analog Devices ADAS3022 16-Bit 1 MSPS 8-Channel Data Acquisition System Datasheet
The ADAS3022 is a complete 16-bit, 1 MSPS, successive approximation-based analog-to-digital data acquisition system manufactured by Analog Devices. It integrates an 8-channel, low leakage multiplexer, a high impedance programmable gain instrumentation amplifier (PGIA) stage, a precision 4.096 V reference and buffer, and a 16-bit charge redistribution ADC with SAR architecture. The device is suitable for multichannel data acquisition, system monitoring, process control, and automated test equipment.
Read onlineAnalog Devices ADAS3022 specifications
| Resolution | 16 Bits |
|---|---|
| Conversion Rate (8 channels) | 125 kSPS |
| Input Impedance | 500 MΩ |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | LFCSP (6 mm × 6 mm) |
Source: Analog Devices ADAS3022 16-Bit 1 MSPS 8-Channel Data Acquisition System Datasheet
All Analog Devices ADAS3022 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum differential input voltage range for this device?
The maximum differential input voltage range is ±24.576 V.
From: Analog Devices ADAS3022 16-Bit 1 MSPS 8-Channel Data Acquisition System Datasheet
How many channels does the ADAS3022 have and what is its conversion rate?
It has an 8-channel input with a throughput of up to 1 MSPS for one channel.
From: Analog Devices ADAS3022 16-Bit 1 MSPS 8-Channel Data Acquisition System Datasheet
What is the maximum input voltage range of the ADAS3022?
It can accept up to ±24.576 V (maximum) when powered from a ±15 V supply.
From: Analog Devices ADAS3022 16‑bit 1 MSPS 8‑Channel Data Acquisition System Data Sheet
What is the input impedance of each channel?
Each channel has an input impedance of 500 MΩ.
From: Analog Devices ADAS3022 16‑bit 1 MSPS 8‑Channel Data Acquisition System Data Sheet
