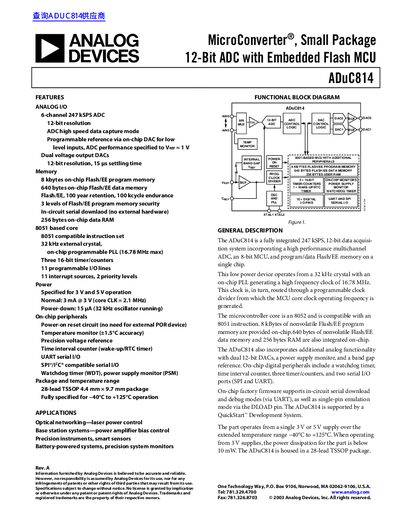

ADuC814 is a 12-bit ADC chip launched by Analog Devices, which integrates Flash MCU, has 6-channel 247 kSPS ADC, 12-bit resolution, high precision data acquisition mode, programmable reference and dual voltage output DACs
The ADuC814 is a fully integrated 247 kSPS, 12-bit data acquisition system incorporating a high performance multichannel ADC, an 8-bit MCU, and program/data Flash/EE memory on a single chip. This low power device operates from a 32 kHz crystal with an on-chip PLL generating a high frequency clock of 16.78 MHz. It includes features such as a 12-bit ADC, dual voltage output DACs, nonvolatile Flash/EE memory, and various on-chip peripherals.
The document provides comprehensive specifications for the ADC and DAC channels, including DC accuracy, dynamic performance, and input/output voltage ranges. It also covers the architecture, memory organization, and detailed descriptions of on-chip peripherals such as timers, UART, SPI, and the watchdog timer, along with hardware design considerations and timing specifications.
| Resolution | 12 Bits |
|---|---|
| Sampling Rate | 247 kSPS |
| Supply Voltage (VDD) | 2.7 V to 3.3 V or 4.5 V to 5.5 V |
| Package | 28-lead TSSOP |
| Operating Temperature | -40° C to +125°C |
| Program Memory | 8 kbytes Flash/EE |
| Data Memory | 640 bytes Flash/EE |
| RAM | 256 bytes |
The maximum sampling rate is 247 kSPS.
Yes, it includes a 2.5 V internal band gap reference.
The on-chip DACs have a 12-bit resolution.
