Start here

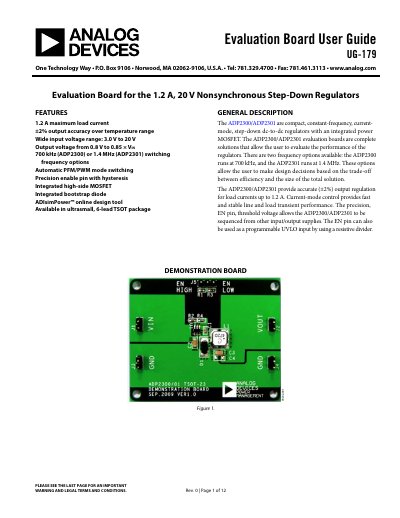

ANALOG DEVICES UG-179: Evaluation Board for the 1.2 A 20 V Nonsynchronous Step-Down Regulators User Guide
The document serves as a user guide for the Analog Devices ADP2300 and ADP2301 evaluation boards. These boards are designed to allow users to evaluate the performance of the 1.2 A, 20 V nonsynchronous step-down regulators. The guide covers essential setup procedures, including jumper configurations for enabling the part and programming the input start-up voltage.
Read onlineAnalog Devices ADP2300 specifications
| Input Voltage Range | 3.0 V to 20 V |
|---|---|
| Maximum Load Current | 1.2 A |
| Output Accuracy | ±2% |
| Switching Frequency (ADP2300) | 700 kHz |
| Switching Frequency (ADP2301) | 1.4 MHz |
| Output Voltage Range | 0.8 V to 0.85 × VIN |
| Operating Junction Temperature | -40°C to +125°C |
Source: Analog Devices ADP2300/ADP2301 DC-DC Buck Regulator Datasheet
All Analog Devices ADP2300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum load current for ADP2300/ADP2301?
The devices can provide a maximum of 1.2 A of load current.
From: Analog Devices ADP2300/ADP2301 DC-DC Buck Regulator Datasheet
What is the output voltage accuracy over the full temperature range?
The output accuracy is ±2% across the entire temperature range.
From: Analog Devices ADP2300/ADP2301 DC-DC Buck Regulator Datasheet
How do I enable the part on the evaluation board?
Connect a jumper between Position 1 and Position 2 on Jumper J5.
How do I disable the part on the evaluation board?
Connect a jumper between Position 2 and Position 3 on Jumper J5.
What is the input voltage range of the ADP2300/ADP2301?
The converters accept an input voltage from 3.0 V to 20 V.
What temperature range can the converters operate in?
They are rated for operation from –40 °C up to +125 °C.
