Start here

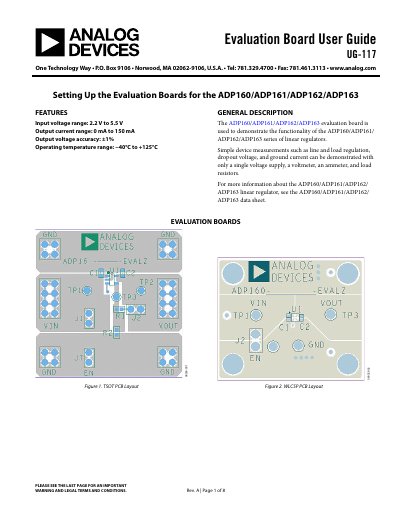

Analog Devices ADP160/ADP161/ADP162/ADP163 Evaluation Board User Guide UG-117
The document serves as a user guide for the Evaluation Boards corresponding to the ADP160, ADP161, ADP162, and ADP163 series of low dropout linear regulators. It details the hardware configurations available in TSOT and WLCSP packages and explains how components like resistors and jumpers are used to set output voltages.
The guide provides step-by-step instructions for performing various electrical characterizations on the boards. These procedures include measuring output voltage accuracy, line regulation, load regulation, dropout voltage, and ground current consumption using standard laboratory equipment such as voltmeters, ammeters, and electronic loads.
All Analog Devices ADP160 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input voltage range for these evaluation boards?
The input voltage range is 2.2 V to 5.5 V.
From: Analog Devices ADP160/ADP161/ADP162/ADP163 Evaluation Board User Guide UG-117
What is the maximum output current capability?
The output current range goes up to 150 mA.
From: Analog Devices ADP160/ADP161/ADP162/ADP163 Evaluation Board User Guide UG-117
