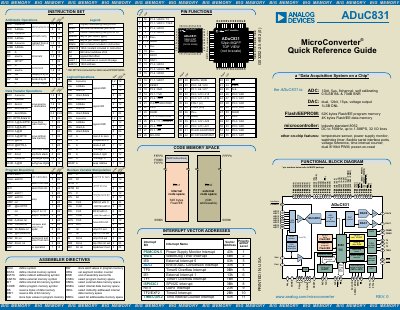

Analog Devices ADuC831 User Guide
This document provides operating information for the ADuC831 microcontroller from Analog Devices. It is intended for engineers and developers who need to configure and use the device.
The guide covers basic setup, pin functions, and programming basics, although the extracted text does not contain detailed sections.
Analog Devices ADUC831 specifications
| Timeout Interval Range | 1/128 second to 255 hours |
|---|---|
| Supported MicroConverter Parts | ADuC814, ADuC816, ADuC824, ADuC831, ADuC832, ADuC834 |
| Clock Source | 32.768KHz watch crystal or r/c oscillator |
| Powerdown Capability | Remains active during powerdown |
Source: Analog Devices MicroConverter Time Interval Counter Application Note
All Analog Devices ADUC831 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Disassembly, diagnostics and part numbers, for repair.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the revision number of this errata sheet?
The document is Revision B.1, dated November 2002.
From: ANALOG DEVICES ADuC831: Errata Sheet (Rev B1 2002-11-01-)
Does the low voltage ADC clock issue have a work-around?
No, there is no work-around provided for this specific issue.
From: ANALOG DEVICES ADuC831: Errata Sheet (Rev B1 2002-11-01-)
What is the maximum ADC conversion speed for this microcontroller?
The on-chip ADC has been designed to run at a maximum conversion speed of 5 uS (200 kHz sampling rate).
How is the DMA mode enabled?
The DMA mode is enabled by writing to ADCCON2 with a specific value, such as MOV ADCCON2?, #40H.
Can the Time Interval Counter wake the device from powerdown?
Yes, the TIC can remain active during powerdown and generate an interrupt to wake up the MicroConverter.
From: Analog Devices MicroConverter Time Interval Counter Application Note
Which MicroConverter parts include the Time Interval Counter?
The TIC is present on the ADuC814, ADuC816, ADuC824, ADuC831, ADuC832, and ADuC834.
From: Analog Devices MicroConverter Time Interval Counter Application Note
