Start here

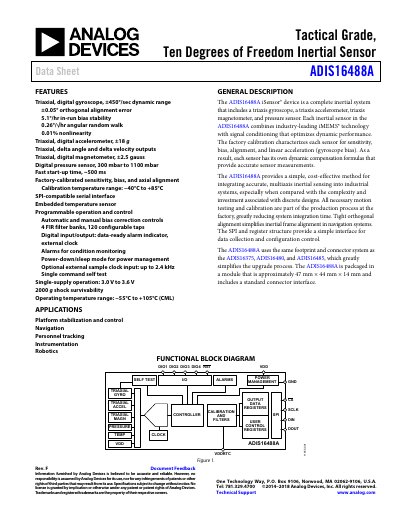

Analog Devices ADIS16488A Inertial Sensor Data Sheet
The ADIS16488A is a complete inertial system that integrates triaxial gyroscope, accelerometer, magnetometer, and pressure sensor technologies. It features factory calibration for sensitivity, bias, and alignment, simplifying integration into industrial systems such as robotics and navigation platforms.
The device operates on a single supply of 3.0 V to 3.6 V with an SPI-compatible serial interface. Key specifications include a dynamic range of ±450°/sec for the gyroscope and ±18 g for the accelerometer, along with embedded temperature sensing and programmable operation modes.
Analog Devices ADIS16488A specifications
| Dynamic Range (Gyroscope) | ±450 °/sec |
|---|---|
| Dynamic Range (Accelerometer) | ±18 g |
| Operating Temperature Range | -55°C to +105°C |
| Power Supply Voltage | 3.0 V to 3.6 V |
| Start-up Time | ~500 ms |
Source: Analog Devices ADIS16488A Inertial Sensor Data Sheet
All Analog Devices ADIS16488A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the ADIS16488A?
The device operates from −55°C to +105°C.
What type of interface does the ADIS16488A use?
It uses an SPI-compatible serial interface.
What is the dynamic range of the gyroscope?
The gyroscope has a dynamic range of ±450 °/sec.
From: Analog Devices ADIS16488A 10-Degree-of-Freedom Inertial Sensor Datasheet
Does the ADIS16488A include factory calibration?
Yes, it includes factory calibration for sensitivity, bias, axis alignment, and linear acceleration.
From: Analog Devices ADIS16488A 10-Degree-of-Freedom Inertial Sensor Datasheet
