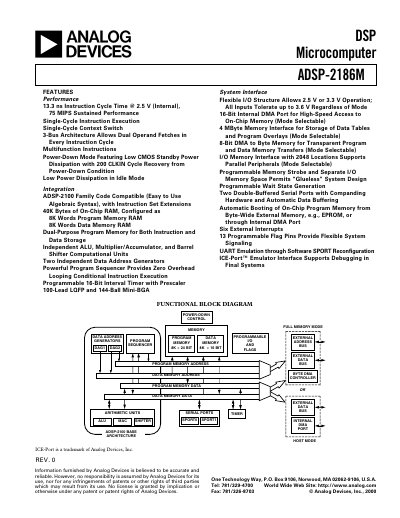

Analog Devices ADSP-2186M DSP Microcomputer Datasheet
The ADSP-2186M is a single-chip microcomputer optimized for digital signal processing and high-speed numeric applications. It integrates the ADSP-2100 family base architecture with two serial ports, a 16-bit internal DMA port, a byte DMA port, and extensive interrupt capabilities. The device features 40K bytes of on-chip memory configured as 8K words of program RAM and 8K words of data RAM.
Read onlineAnalog Devices ADSP-2186 specifications
| Instruction Cycle Time | 13.3 ns |
|---|---|
| Sustained Performance | 75 MIPS |
| On-Chip Program Memory | 8K Words (24-bit) |
| On-Chip Data Memory | 8K Words (16-bit) |
| Package Types | 100-lead LQFP and 144-Ball Mini-BGA |
Source: Analog Devices ADSP-2186M DSP Microcomputer Datasheet
All Analog Devices ADSP-2186 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ADSP-2186M optimized for?
The ADSP-2186M is a single-chip microcomputer optimized for digital signal processing and other high-speed numeric processing applications.
How much on-chip memory does the ADSP-2186M integrate?
The ADSP-2186M integrates 40K bytes of on-chip memory configured as 8K words of program RAM and 8K words of data RAM.
What is the instruction cycle time of the ADSP-2186?
The ADSP-2186 operates with a 25 ns instruction cycle time.
How much on-chip memory does the ADSP-2186 integrate?
It integrates 40K bytes of on-chip memory configured as 8K words of program RAM and 8K words of data RAM.
What is the sustained performance of the ADSP-2186L?
The ADSP-2186L provides 40 MIPS sustained performance.
Does the ADSP-2186L support single-cycle instruction execution?
Yes, every instruction can execute in a single processor cycle.
