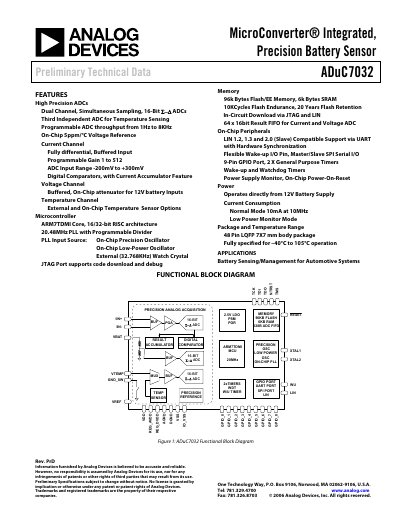

ANALOG DEVICES ADuC7032: MicroConverter Integrated Precision Battery Sensor Data Sheet (Rev PrD 2006-10-01-)
The ADuC7032 is a MicroConverter integrated precision battery sensor designed for automotive battery management systems. It features dual-channel simultaneous sampling 16-bit Sigma-Delta ADCs, an independent temperature sensing ADC, and an on-chip 5ppm/°C voltage reference. The device includes a buffered input with programmable gain and supports input ranges from -200mV to +300mV.
Read onlineAnalog Devices ADuC7032 specifications
| ADC Resolution | 16-Bit |
|---|---|
| ADC Sampling Rate | 1Hz to 8KHz |
| Voltage Reference | 5ppm/°C |
| ADC Input Range | -200mV to +300mV |
| Microcontroller Core | ARM7TDMI |
| Flash Memory | 96k Bytes |
| SRAM | 6k Bytes |
| Flash Endurance | 10KCycles |
| Flash Retention | 20 Years |
| Operating Temperature | -40°C to 105°C |
| Package | 48 Pin LQFP |
All Analog Devices ADuC7032 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for the ADuC7032?
It is designed for Battery Sensing/Management for Automotive Systems.
Does the ADuC7032 include a microcontroller?
Yes, it includes an ARM7TDMI Core with a 16/32-bit RISC architecture.
What is the operating temperature range of the ADuC7032-8L?
The device is fully specified for operation from -40°C to +105°C.
From: Analog Devices ADuC7032-8L Integrated Precision Battery Sensor Datasheet
Does the ADuC7032-8L support LIN communication?
Yes, it supports LIN 1.3- and 2.0-compatible interfaces via UART with hardware synchronization.
From: Analog Devices ADuC7032-8L Integrated Precision Battery Sensor Datasheet
