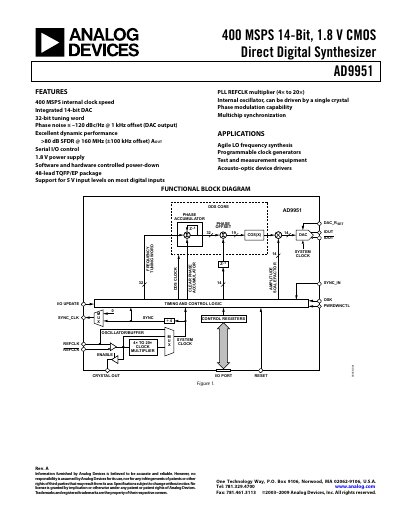

Analog Devices AD9951 Direct Digital Synthesizer Datasheet
The AD9951 is a direct digital synthesizer (DDS) that features a 14-bit DAC operating up to 400 MSPS. It utilizes advanced DDS technology coupled with an internal high-speed, high-performance DAC to form a digitally programmable, complete high-frequency synthesizer capable of generating frequency-agile analog output sinusoidal waveforms at up to 200 MHz.
The device is designed for fast frequency hopping and fine tuning resolution using a 32-bit frequency tuning word. Frequency tuning and control words are loaded via a serial I/O port. The AD9951 operates over an extended industrial temperature range of –40°C to +105°C and includes features such as phase modulation capability, multichip synchronization, and support for 5 V input levels on most digital inputs.
Analog Devices AD9951 specifications
| Internal Clock Speed | 400 MSPS |
|---|---|
| DAC Resolution | 14-bit |
| Operating Temperature Range | -40°C to +105°C |
| Full-Scale Output Current (Typ) | 5 mA |
| Wideband SFDR (1 MHz to 10 MHz) | 73 dBc |
| Power Consumption (Single-Tone Mode) | 162 mW |
Source: Analog Devices AD9951 Direct Digital Synthesizer Datasheet
All Analog Devices AD9951 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output frequency of the AD9951?
The device can generate a frequency-agile analog output sinusoidal waveform at up to 200 MHz.
From: Analog Devices AD9951 Direct Digital Synthesizer Datasheet
How is the frequency tuning word loaded?
The frequency tuning and control words are loaded into the AD9951 via a serial I/O port.
From: Analog Devices AD9951 Direct Digital Synthesizer Datasheet
What is the maximum output frequency of the AD9951?
The device can generate a frequency-agile analog output sinusoidal waveform at up to 200 MHz.
From: Analog Devices AD9951 Direct Digital Synthesizer Datasheet
How is the frequency tuning word loaded?
The frequency tuning and control words are loaded into the AD9951 via a serial I/O port.
From: Analog Devices AD9951 Direct Digital Synthesizer Datasheet
