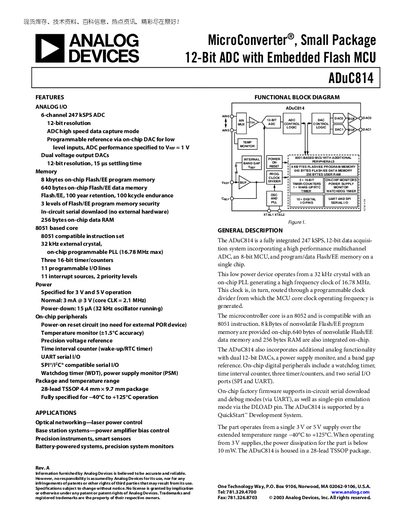

ADuC814 MicroConverter® is a small package 12-bit ADC with embedded FLASH MCU
The ADuC814 MicroConverter integrates a 12‑bit, 247 kSPS ADC, dual 12‑bit DACs, an 8052‑compatible MCU core, on‑chip Flash/EE program memory (8 kB) and data memory (640 bytes). It operates from a single 3 V or 5 V supply, consumes as little as 3 mA in normal mode and 15 pA in power‑down, and is housed in a 28‑lead TSSOP package.
Typical applications include optical networking laser‑power control, base‑station power‑amplifier bias, precision instruments, smart sensors and battery‑powered monitoring systems. The device includes on‑chip peripherals such as UART, SPI/I²C, watchdog timer, power‑supply monitor and a temperature sensor.
| ADC resolution | 12 bits |
|---|---|
| ADC sampling rate | 247 kSPS |
| Flash program memory | 8 kB |
| Flash data memory | 640 bytes |
| DAC resolution | 12 bits |
| Operating voltage | 3 V or 5 V |
| Power‑down current | 15 pA |
| Normal mode current | 3 mA @3 V |
| Temperature range | -40 °C to +125 °C |
| Package | 28‑lead TSSOP |
The part operates from a single 3 V or 5 V supply.
The flash/EE memory is qualified for 100 k cycles endurance.
Power‑down current is 15 pA with the 32 kHz oscillator running.
