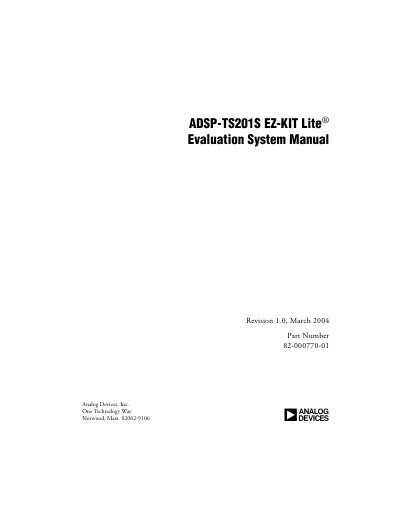

Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System Manual
The ADSP-TS201S EZ-KIT Lite is an evaluation system designed for the TigerSHARC floating-point embedded processor, specifically targeting software-defined radio applications. The system includes two ADSP-TS201S processors running at 500 MHz, along with integrated audio interfaces (AD1871 ADC and AD1854 DAC) and 32 MB of SDRAM. It is intended to be used with the VisualDSP++ development environment to test processor capabilities and develop application code.
Read onlineAnalog Devices ADSP-TS201S EZ-KIT Lite specifications
| Core Clock Speed | 500 MHz |
|---|---|
| SDRAM Memory | 32 MB |
| Flash Memory | 512K |
| ADC Frequency | 96 kHz |
| DAC Frequency | 96 kHz |
Source: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System Manual
All Analog Devices ADSP-TS201S EZ-KIT Lite documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum size of a user program's code allowed by the license?
The VisualDSP++ license provided with this EZ-KIT Lite evaluation system limits the size of a user program's code to 128K words.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System Manual
How is access to the ADSP-TS201S processor achieved from a PC?
Access is achieved through a USB port or an optional JTAG emulator.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System Manual
What is the evaluation license period for EZ-KIT Lite?
The system offers an unrestricted evaluation license for the first 90 days.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System User Manual
How does access to the processor change after the initial license expires?
After expiration, connections are restricted to the USB Debug Agent interface only; simulator and emulation product connections are no longer allowed.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System User Manual
What is the warranty period for this evaluation system?
The EZ-KIT Lite evaluation system is warranted against defects in materials and workmanship for a period of one year from the date of purchase.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System User Manual
How long is the unrestricted evaluation license valid?
The EZ-KIT Lite offers an unrestricted evaluation license for the first 90 days.
From: Analog Devices ADSP-TS201S EZ-KIT Lite Evaluation System User Manual
