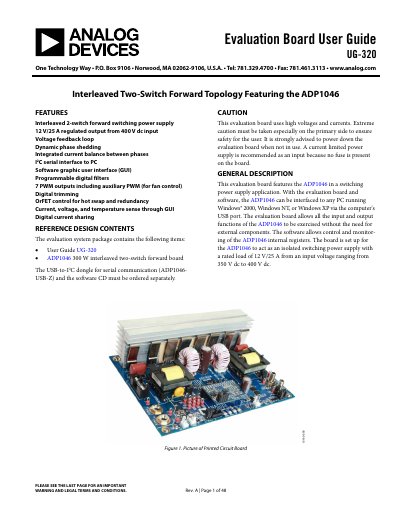

Analog Devices ADP1046 Evaluation Board User Guide UG-320
This document is the User Guide (UG-320) for the Analog Devices ADP1046 evaluation board. It describes the board's implementation of an interleaved two-switch forward topology featuring the ADP1046 controller, designed for a 12 V/25 A regulated output from a 400 V DC input. The guide explains the reference design contents, circuit description, and advantages of the interleaving approach.
Read onlineAnalog Devices ADP1046 specifications
| Input Voltage | 350 V to 400 V dc |
|---|---|
| Output Voltage | 12 V |
| Output Current | 25 A |
| Efficiency | 91.5% |
| Switching Frequency | 148.8 kHz |
| Ambient Temperature | 0 to 50 ºC |
Source: Analog Devices ADP1046 Evaluation Board User Guide UG-320
All Analog Devices ADP1046 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the topology of the ADP1046 evaluation board?
The board features an interleaved two-switch forward topology with synchronous rectification.
From: Analog Devices ADP1046 Evaluation Board User Guide UG-320
What software interface is used for the board?
The board uses an I2C serial interface to connect to a PC running Windows 2000, Windows NT, or Windows XP.
From: Analog Devices ADP1046 Evaluation Board User Guide UG-320
What are the main causes of noise injection in an electromagnetic circuit?
The four main causes are common impedance coupling, capacitive coupling, inductive coupling, and radiation.
What is the recommended resistor tolerance for the RES pin?
A 0.1% resistor is recommended because the tolerance of the internal clock frequency is directly proportional to the accuracy of the RES pin resistor.
What is the ADP1046 designed for?
It is a digital secondary side controller designed for ac-to-dc and isolated dc-to-dc applications.
From: Analog Devices ADP1046 Digital Controller for Isolated Power Supply Applications Datasheet
What supply voltage does the device operate from?
It operates from a single 3.3 V supply.
From: Analog Devices ADP1046 Digital Controller for Isolated Power Supply Applications Datasheet
