Start here

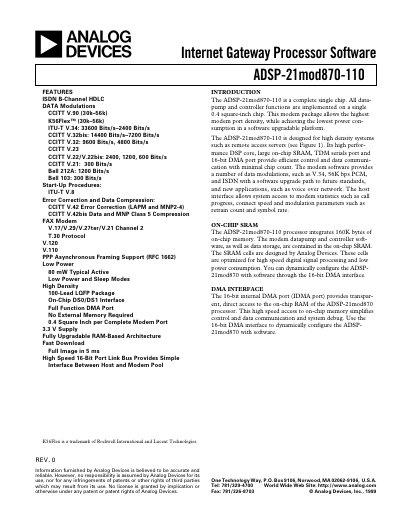

Analog Devices ADSP-21mod870-110 Internet Gateway Processor Datasheet
The ADSP-21mod870-110 is a complete single-chip Internet Gateway Processor that integrates all data pump and controller functions. It is designed for high-density systems such as remote access servers, offering high performance and low power consumption.
Read onlineAnalog Devices ADSP-21mod870 specifications
| Instruction Rate | 52 MIPS |
|---|---|
| Supply Voltage | 3.3 V |
| Typical Active Power | 80 mW |
| Package Type | 100-Lead LQFP |
| On-Chip Memory | 160K bytes |
| Supported Modulations | V.34, 56K, ISDN |
| Download Time | 5 ms |
Source: Analog Devices ADSP-21mod870-110 Internet Gateway Processor Datasheet
All Analog Devices ADSP-21mod870 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical active power consumption?
The typical active power consumption is 80 mW.
From: Analog Devices ADSP-21mod870-110 Internet Gateway Processor Datasheet
Does the device require external memory?
No, the device does not require external memory.
From: Analog Devices ADSP-21mod870-110 Internet Gateway Processor Datasheet
What modem standards does the ADSP-21mod870 implement?
It implements V.34 and V.90 data/fax modems, including the controller and datapump.
From: Analog Devices ADSP-21mod870 Internet Gateway Processor Datasheet
Does the ADSP-21mod870 require external memory?
No, it is a complete single-chip Internet gateway processor that does not require external memory.
From: Analog Devices ADSP-21mod870 Internet Gateway Processor Datasheet
