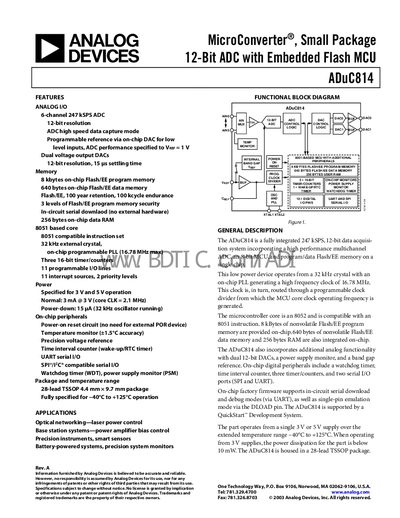

ADuC814 is a 12-bit ADC with embedded Flash MCU produced by Analog Devices.
The ADuC814 MicroConverter integrates a 12‑bit, 247 kSPS ADC, dual 12‑bit DACs, an 8052‑compatible core, on‑chip Flash/EE memory and a range of digital peripherals such as UART, SPI, timers and a watchdog. It operates from a single 3 V or 5 V supply and is specified for an extended temperature range of –40 °C to +125 °C.
The device is offered in a 28‑lead TSSOP package and includes features for low‑power applications, such as a 15 pA power‑down current and a programmable power‑supply monitor. Detailed specifications, pin descriptions, memory organization and ordering information are provided in the handbook.
| ADC resolution | 12 bits |
|---|---|
| ADC sampling rate | 247 kSPS |
| Flash program memory | 8 kB |
| Flash data memory | 640 bytes |
| RAM | 256 bytes |
| Operating voltage | 3 V or 5 V |
| Normal mode current consumption | 3 mA @ 3 V |
| Power‑down current | 15 pA |
| Operating temperature range | -40 °C to +125 °C |
| Package | 28‑lead TSSOP |
| Flash data retention | 100 years |
It operates from a single 3 V or 5 V supply.
The device draws only 15 pA in power‑down mode with the 32 kHz oscillator running.
It includes 8 kB of on‑chip Flash program memory and 640 bytes of Flash data memory.
The ADC can sample at 247 kSPS across six channels.
