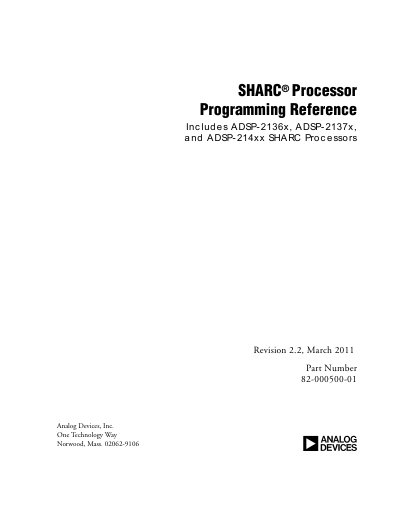

ANALOG DEVICES SHARC Processor Programming Reference (includes the ADSP-2136x/ADSP-2137x/ADSP-214xx processors) Rev. 2.2 March 2011 Manual
This document serves as a comprehensive technical guide for software developers working with Analog Devices SHARC digital signal processors. It details the processor core architecture, including dual processing elements, program sequence control, and JTAG port functionality. The manual provides in-depth information on register files, data transfers, and interrupt handling mechanisms specific to the ADSP-2136x, ADSP-2137x, and ADSP-214xx families.
The guide extensively covers processing elements such as the Arithmetic Logic Unit (ALU), Multiplier, and Barrel Shifter, along with their instruction types and status flags. It also explains program sequencing features like hardware stacks, loop sequencers, cache control, and various operating modes including SIMD and SISD configurations.
Analog Devices ADSP-214xx specifications
| Core clock frequency (Commercial) | up to 450 MHz |
|---|---|
| Core clock frequency (Automotive/Industrial) | up to 400 MHz |
| Core operating voltage (Commercial) | 1.1V |
| Core operating voltage (Automotive/Industrial) | 1.05V |
| DDR2 voltage | 1.8 V |
| I/O voltage | 3.3 V |
Source: ANALOG DEVICES EE-348 handbook
All Analog Devices ADSP-214xx documents by type
Instruction set, parameters and examples for configuring or programming the device.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
Which SHARC processors are included in this manual?
The manual includes the ADSP-2136x, ADSP-2137x, and ADSP-214xx SHARC Processors.
What is the part number of this document?
The part number for this programming reference manual is 82-000500-01.
What is the intended purpose of this document?
The intent is to assist board designers in estimating their power budget for power supply and thermal relief designs using ADSP-214xx processors.
What components make up the total power consumption?
Total power consumption has two components: one due to internal circuitry (core and PLL) and the other due to the switching of external output drivers.
Which SHARC processors are covered in this guide?
The guide covers third generation ADSP-21368, ADSP-2137x and fourth generation ADSP-214xx SHARC processors.
What SDRAM page sizes are supported?
The SDC supports different page sizes that are programmable with column address widths.
