Analog Devices ADL5304 Manuals

ManualLib has 3 documents for the Analog Devices ADL5304 (Other Electronics): 1 datasheet, 1 user manual. Every file can be read online or downloaded as a PDF for free.

Datasheet 1User Manual 1

Key facts

Model
ADL5304
Documents
3
Languages
EN
Last added
2022-10-19

Start here

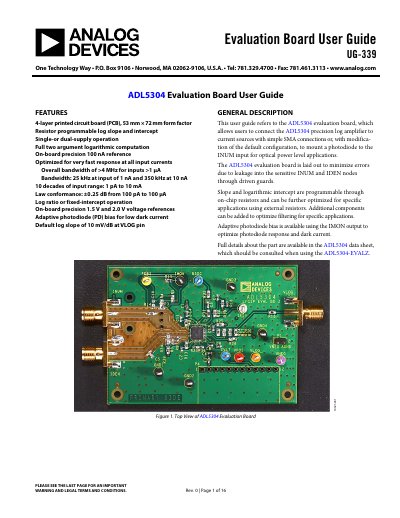

ANALOG DEVICES UG-339 handbook

ANALOG DEVICES UG-339 handbook

User Manual 16 pages · 2.1 MB · EN

The ADL5304 evaluation board allows users to connect the precision log amplifier to current sources or photodiodes. It features a 4-layer PCB with a 53 mm × 72 mm form factor and supports single or dual-supply operation. The board includes programmable log slope and intercept via on-chip resistors and an on-board precision 100 nA reference.

Read online

Analog Devices ADL5304 specifications

Input Current Range (Single Supply)1 pA to 3 mA
Input Current Range (Dual Supply)1 pA to 10 mA
Logarithmic Slope200 mV/dec
Bandwidth (INUM > 1 µA)>4 MHz
Operating Temperature Range-40°C to +85°C

Source: Analog Devices ADL5304 High Speed Logarithmic Converter Data Sheet

All Analog Devices ADL5304 documents by type

Datasheet 1

Ratings, dimensions and ordering codes, for selection and design work.

User Manual 1

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What is the measurement range of the ADL5304?

The device covers a 200 dB measurement range from 1 pA to 10 mA.

From: Analog Devices ADL5304 High Speed Logarithmic Converter Data Sheet

What is the default logarithmic slope?

The default log slope is 10 mV/dB at the VLOG pin.

From: Analog Devices ADL5304 High Speed Logarithmic Converter Data Sheet

What is the default configuration for the VNEG bus?

In single-supply configuration, the VNEG bus is connected to ground using Jumper P1.

From: ANALOG DEVICES UG-339 handbook

How can the ADL5304 be used in dual-supply mode?

Remove Jumper P1 and connect the VNEG supply to a −2 V to −5 V source.

From: ANALOG DEVICES UG-339 handbook
