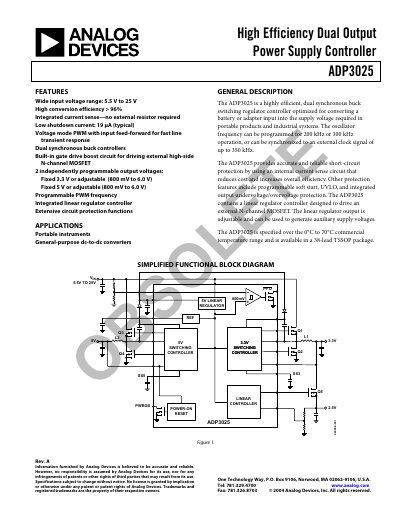

Analog Devices ADP3025 Dual Output Power Supply Controller Datasheet
The ADP3025 is a highly efficient, dual output power supply controller optimized for converting battery or adapter input into required supply voltages. It features two independently programmable outputs with fixed options of 3.3 V and 5 V, or adjustable ranges from 800 mV to 6.0 V.
The device utilizes voltage mode PWM with input feed-forward for fast line transient response and includes an integrated current sense circuit that eliminates the need for external resistors. It operates over a wide input voltage range of 5.5 V to 25 V and offers extensive protection functions, including short-circuit, UVLO, and output undervoltage/overvoltage protection.
Analog Devices ADP3025 specifications
| Input Voltage Range | 5.5 V to 25 V |
|---|---|
| Conversion Efficiency | > 96% |
| Shutdown Current | 19 µA (typical) |
| Output Voltage Range (Fixed/Adjustable) | 3.3 V or adjustable (800 mV to 6.0 V); 5 V or adjustable (800 mV to 6.0 V) |
| Operating Temperature Range | 0°C to 70°C |
| Package Type | 38-lead TSSOP |
Source: Analog Devices ADP3025 Dual Output Power Supply Controller Datasheet
