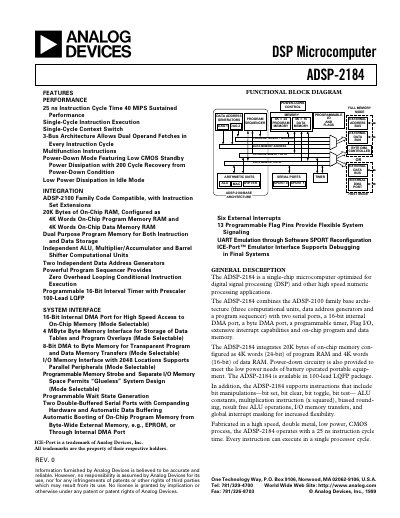

Analog Devices ADSP-2184 DSP Microcomputer Datasheet
The document provides a comprehensive overview of the ADSP-2184 DSP microcomputer, highlighting its optimization for digital signal processing and high-speed numeric applications. Key architectural features include a three-bus design allowing dual operand fetches, single-cycle instruction execution with a 25 ns cycle time, and integration of on-chip program and data memory.
Read onlineAnalog Devices ADSP-2184 specifications
| Instruction Cycle Time | 25 ns |
|---|---|
| Sustained Performance | 40 MIPS |
| On-Chip Program Memory | 20K Bytes (4K Words) |
| On-Chip Data Memory | 4K Words (16-bit) |
| Package Type | 100-Lead LQFP |
Source: Analog Devices ADSP-2184 DSP Microcomputer Datasheet
All Analog Devices ADSP-2184 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the instruction cycle time of the ADSP-2184?
The ADSP-2184 operates with a 25 ns instruction cycle time.
Does the ADSP-2184 support single-cycle instruction execution?
Yes, every instruction can execute in a single processor cycle.
What differentiates the members of the ADSP-218xL series?
All series members are pin-compatible and are differentiated solely by the amount of on-chip SRAM.
Is the ADSP-218xL code compatible with previous families?
Yes, it is ADSP-2100 family code compatible with instruction set extensions.
