Key facts
- Brand
- Analog Devices
- Model
- ADUC834
- Industry
- Industrial
- Documents
- 9
- Languages
- EN
- Last added
- 2012-08-03
Start here

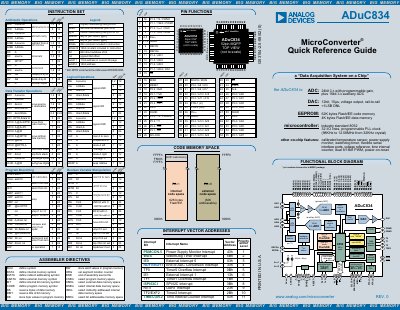

Analog Devices ADuC834 User Guide
This guide provides information on the ADuC834 microcontroller from Analog Devices. It is intended for engineers and developers who need to understand the basic operation and features of the device.
The document includes sections on device overview, pin configuration, programming basics, and troubleshooting tips.
Analog Devices ADUC834 specifications
| ADC Conversion Rate | 5.4 Hz min to 105 Hz max |
|---|---|
| Primary ADC Resolution | 24 Bits min |
| Primary ADC Resolution (20 mV Range) | 13 Bits p-p typ |
| Primary ADC Resolution (2.56 V Range) | 18 Bits p-p typ |
| Auxiliary ADC Resolution | 16 Bits min |
| Auxiliary ADC Resolution (2.5 V Range) | 16 Bits p-p typ |
| DAC Resolution | 12 Bits |
| Power Supply | 3 V and 5 V Operation |
| Power Dissipation (3V) | Below 10mW |
| Package | 52-lead MQFP |
| Program Memory | 62 Kbytes |
| Data Memory | 4 Kbytes |
| User RAM | 256 Bytes |
| Extended RAM | 2 KBytes |
| Core Clock Frequency | 12.58 MHz Max |
All Analog Devices ADUC834 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices ADuC834 MicroConverter Dual 16-/24-Bit ADCs with Embedded 62KB FLASH MCU Preliminary Technical Data 72 p
- Analog Devices ADuC834 Datasheet 80 p
- Analog Devices ADuC834 Datasheet Rev A 80 p
- Analog Devices ADuC834 Data Sheet 80 p
- Analog Devices ADuC834 Datasheet 80 p
- Analog Devices ADuC834 Datasheet 80 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What files are required to use the ADuC834 C-library?
Three files are required: the library itself (834keil.lib), the header file (lib834.h), and a modified C51s.lib library file.
How do you configure the primary ADC channel?
Use the AdcCfg function, passing parameters for ADC0CON, ADCICON, and SF registers to set reference, channel selection, coding mode, range, and update rate.
What is the workaround for the extended stack pointer PUSH/POP issue?
Push or pop data through the accumulator instead of using direct addressing, or use the Keil Compiler directive #pragma NOAREGS.
Which ADuC834 packages does this errata sheet apply to?
It applies to all ADuC834 packaged material branded as ADuC834BS or ADuC834BCP with a fourth line of F23.
What is the operating voltage range for the ADuC834?
The device operates from a 3V or 5V supply.
What is the power dissipation of the ADuC834 at 3V?
When operating from 3V, the power dissipation is below 10mW.
