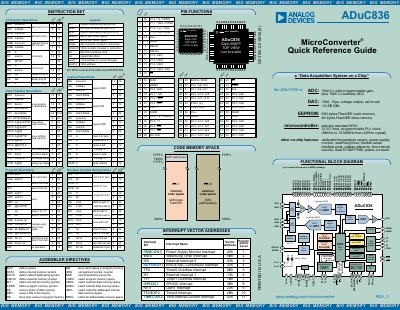

Analog Devices ADuC836 User Guide
This guide provides information on using the ADuC836 microcontroller.
It includes setup, programming, and operation instructions for the device.
Analog Devices ADUC836 specifications
| Program Memory Size | 62 Kbytes |
|---|---|
| Data RAM Size | 2304 Bytes |
| Operating Voltage (Normal) | 2.3 mA Max @ 3.6 V |
| Clock Frequency (Max) | 12.58 MHz |
Source: Analog Devices ADuC836 MicroConverter Dual 16-Bit ADCs with Embedded Flash MCU Datasheet
All Analog Devices ADUC836 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ANALOG DEVICES ADuC836 handbook3
- Analog Devices ADuC836 MicroConverter Dual 16-Bit ADCs with Embedded Flash MCU Datasheet 80 p
- Analog Devices ADuC836 MicroConverter Dual 16‑Bit ADC Datasheet 80 p
- Analog Devices ADuC836 Datasheet 80 p
- Analog Devices ADuC836 Datasheet 80 p
- Analog Devices ADuC836 MicroConverter Datasheet 80 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum operating frequency for the primary ADC?
The primary ADC can operate at a maximum conversion rate of 105 Hz.
From: Analog Devices ADuC836 MicroConverter Dual 16-Bit ADCs with Embedded Flash MCU Datasheet
How many bits of resolution does the device provide for its analog-to-digital converters?
The device provides two independent ADCs with a minimum of 16-bit resolution.
From: Analog Devices ADuC836 MicroConverter Dual 16-Bit ADCs with Embedded Flash MCU Datasheet
How much flash program memory does the ADuC836 have?
The ADuC836 provides 62 KB of on‑chip flash program memory.
From: Analog Devices ADuC836 MicroConverter Dual 16‑Bit ADC Datasheet
What are the supported operating voltage ranges for the ADuC836?
It can operate with AVpp/DVpp at 2.7‑3.6 V or 4.75‑5.25 V.
From: Analog Devices ADuC836 MicroConverter Dual 16‑Bit ADC Datasheet
What supply voltages does the ADuC836 support?
The device can run from either a 3 V supply (2.7 V – 3.6 V) or a 5 V supply (4.75 V – 5.25 V).
How many programmable I/O pins are available?
The ADuC836 provides 26 programmable I/O lines.
