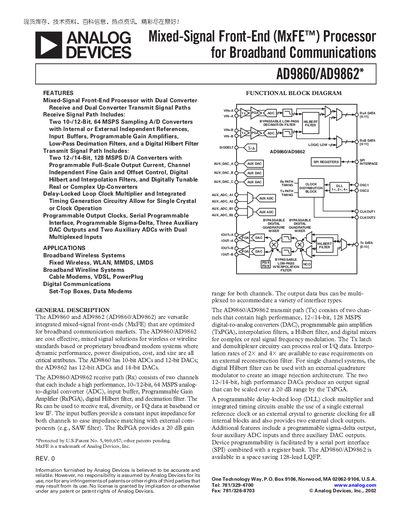

Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Manual
The AD9860 and AD9862 are versatile mixed‑signal front‑end (MxFE) processors optimized for broadband wireless and wireline communication systems. They integrate dual ADC and DAC paths, programmable gain amplifiers, digital filters, and timing circuitry in a compact 128‑lead LQFP package.
This manual details the device features, functional block diagram, electrical specifications, pin‑out tables, timing characteristics, power‑supply requirements, and ordering information, along with definitions of key performance metrics.
Analog Devices AD9860 specifications
| ADC resolution | 10‑bit (AD9860) / 12‑bit (AD9862) |
|---|---|
| DAC resolution | 12‑bit (AD9860) / 14‑bit (AD9862) |
| Maximum ADC sampling rate | 64 MSPS |
| RxPGA gain range | +6 dB |
Source: Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Datasheet
All Analog Devices AD9860 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What package does the AD9860/AD9862 use?
Both parts are offered in a 128‑lead low‑profile plastic Quad Flat‑Pack (LQFP).
From: Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Datasheet
What is the maximum full‑scale output current of the transmit DAC?
The transmit DAC can deliver up to 20 mA full‑scale output current.
From: Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Datasheet
What are the ADC resolutions of the AD9860 and AD9862?
The AD9860 uses 10‑bit ADCs while the AD9862 uses 12‑bit ADCs.
From: Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Manual
What is the maximum update rate of the DACs?
The DACs can update at up to 128 MSPS.
From: Analog Devices AD9860/AD9862 Mixed-Signal Front-End Processor Manual
