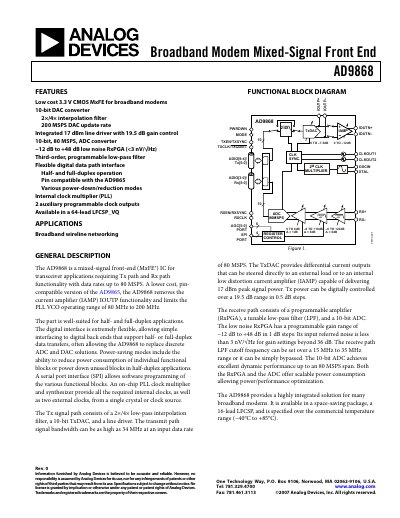

Analog Devices AD9868 Mixed-Signal Front-End Datasheet
The AD9868 mixed‑signal front‑end (MxFE) integrates a 10‑bit DAC, 2×/4× interpolation filter, 200 MSPS DAC update rate, a 17 dBm line driver, a 10‑bit ADC, low‑noise RxPGA, and programmable low‑pass filters. It supports half‑ and full‑duplex operation and offers flexible digital interfacing via an SPI port.
The device is supplied in a 64‑lead LFCSP package, operates over a commercial temperature range (‑40 °C to +85 °C), and includes power‑saving modes that allow individual functional blocks to be powered down when not in use. Detailed specifications cover analog and digital performance, power consumption, timing, and absolute maximum ratings.
Analog Devices AD9868 specifications
| Supply Voltage (AVDD) | 3.3 V ±5% |
|---|---|
| DAC Update Rate | 200 MSPS |
| Operating Temperature Range | ‑40 °C to +85 °C |
Source: Analog Devices AD9868 Mixed-Signal Front-End Datasheet
All Analog Devices AD9868 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages are required for the AD9868?
All core supplies (AVDD, DVDD, CLKVDD, DRVDD) require 3.3 V, with AVDD allowed a ±5 % tolerance.
From: Analog Devices AD9868 Mixed-Signal Front-End Datasheet
What package options are available for the AD9868?
The AD9868 is available in a 64‑lead LFCSP_VQ package (CP‑64‑3).
What is the supply voltage range for AVDD?
AVDD operates at 3.135 V to 3.465 V, with a typical value of 3.3 V.
