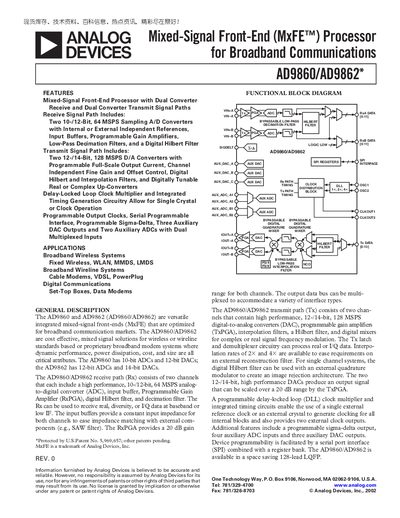

AD9860/AD9862 are versatile integrated mixed-signal front-ends (MxFE) that are optimized for broadband communication markets. They are cost effective, mixed signal solutions for wireless or wireline standards based or proprietary broadband modem systems where dynamic performance, power dissipation, cost, and size are all critical attributes. AD9860 has 10-bit ADCs and 12-bit DACs; AD9862 has 12-bit ADCs and 14-bit DACs. The AD9860/AD9862 receive path (Rx) consists of two channels that each include a high performance, 10-/12-bit, 64 MSPS analog-to-digital converter (ADC), input buffer, Programmable Gain Amplifier (RxPGA), digital Hilbert filter, and decimation filter. The Rx can be used to receive...
The AD9860 and AD9862 are mixed‑signal front‑end (MxFE) processors optimized for broadband communication applications. They integrate dual ADC and DAC paths, programmable gain amplifiers, digital filters, and a DLL‑based clock multiplier.
The document provides full electrical specifications, pin configurations, timing characteristics, and ordering information for the 128‑lead LQFP devices, along with definitions of key performance metrics such as SNR, THD, and SFDR.
