AD9286 is an 8-bit, 500 MSPS, 1.8 V analog-to-digital converter (ADC) from Analog Devices. It features single 1.8 V supply operation, high signal-to-noise ratio (SNR), high dynamic range (SFDR), low power consumption, and is suitable for battery-powered instruments, handheld scope meters, and low-cost digital oscilloscopes.
The AD9286 is an 8‑bit, 500 MSPS analog‑to‑digital converter (ADC) optimized for low cost and low power. It operates from a single 1.8 V supply, provides LVDS‑compatible differential digital outputs, and includes on‑chip reference, clocking, and a pin‑programmable power‑down function.

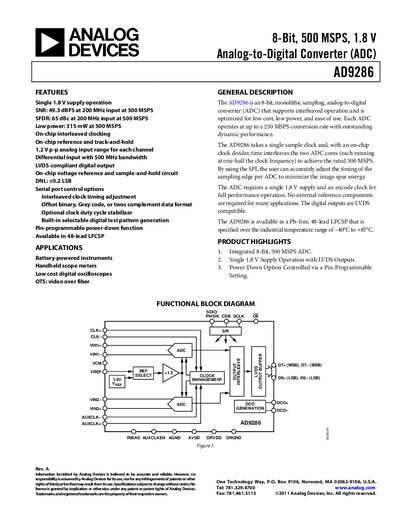

The datasheet includes full specifications, pin configurations, timing diagrams, absolute maximum ratings, thermal data, and design guidelines for PCB layout and power distribution. It also provides a memory‑map register description and SPI interface details for configuring the device.
| Resolution | 8 bits |
|---|---|
| Supply Voltage (AVDD/DRVDD) | 1.8 V (typical) |
| Input Span | 1.2 V p‑p differential |
| Maximum Sample Rate | 500 MSPS (interleaved) |
| Digital Output Type | LVDS‑compatible differential |
The AD9286 operates from a single 1.8 V supply (AVDD and DRVDD).
It can sample up to 500 MSPS using on‑chip interleaved operation.
The device outputs LVDS‑compatible differential signals.
