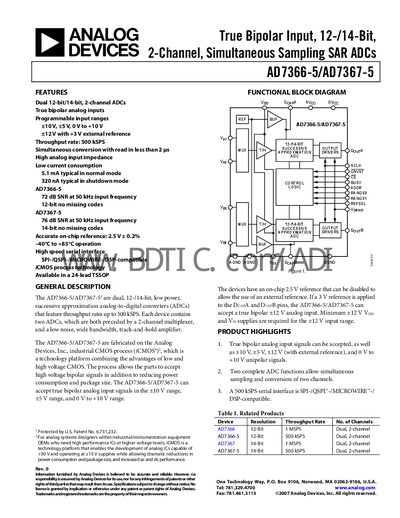

Analog Devices AD7366-5/AD7367-5 Handbook
The AD7366-5 and AD7367-5 are dual‑channel, 12‑/14‑bit successive‑approximation ADCs with true bipolar input capability and a 500 kSPS throughput rate. The devices are offered in a 24‑lead TSSOP package and include an on‑chip 2.5 V reference that can be disabled for external references.
The handbook provides functional block diagrams, detailed electrical specifications, timing requirements, layout and grounding recommendations, and application hints for integrating the converters into industrial or instrumentation designs.
Analog Devices AD7367 specifications
| Supply Voltage (AVCC/DVCC) | 4.75 V to 5.25 V |
|---|---|
| Positive Supply (VDD) | 11.5 V to 16.5 V |
| Negative Supply (VSS) | −16.5 V to −11.5 V |
| Drive Voltage (VDRIVE) | 2.7 V to 5.25 V |
| Maximum Sampling Rate | 1 MSPS (1.12 MSPS typ.) |
| Input Voltage Ranges | ±10 V, ±5 V, 0‑10 V, ±12 V with external reference |
| Normal‑Mode Supply Current (IDD) | 370 µA – 550 µA |
Source: Analog Devices AD7366/AD7367 Dual 12‑Bit/14‑Bit 2‑Channel SAR ADC Datasheet
All Analog Devices AD7367 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum sampling rate of the AD7366/AD7367?
The device can sample at up to 1 MSPS (typical 1.12 MSPS).
From: Analog Devices AD7366/AD7367 Dual 12‑Bit/14‑Bit 2‑Channel SAR ADC Datasheet
Which input voltage ranges are supported?
It supports ±10 V, ±5 V, 0‑10 V, and with an external reference, ±12 V bipolar ranges.
From: Analog Devices AD7366/AD7367 Dual 12‑Bit/14‑Bit 2‑Channel SAR ADC Datasheet
What is the maximum sampling rate of the AD7367?
The AD7367 can sample at up to 1 MSPS.
What is the operating temperature range?
The device operates from –40 °C to +85 °C.
What input voltage ranges does the AD7367-5 support?
It accepts true bipolar +10 V, +5 V, +12 V (with external reference) and 0 V to +10 V unipolar signals.
What is the maximum conversion throughput of the devices?
Both the AD7366-5 and AD7367-5 can sample at up to 500 kSPS.
