AD7367 is a dual-channel 14-bit SAR ADC that supports ±10V, ±5V, 0-10V three input ranges, the sample rate can reach 1MSPS, with low power consumption, high bandwidth and other characteristics.
The AD7367 is a dual 14‑bit, 2‑channel SAR ADC with true bipolar inputs and programmable input ranges (+10 V, +5 V, 0‑10 V). It operates from a 4.75‑5.25 V supply, provides an on‑chip 2.5 V reference, and supports a 1 MSPS throughput rate.

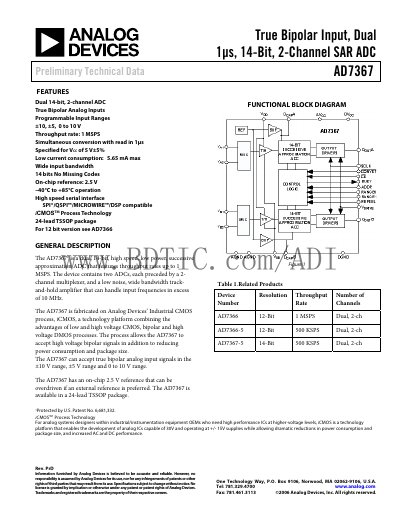

This document provides the device’s functional block diagram, electrical specifications, timing diagrams, pin configuration, serial interface details, absolute maximum ratings, and ordering information for the 24‑lead TSSOP package.
| Resolution | 14‑bit |
|---|---|
| Throughput rate | 1 MSPS |
| Power consumption | 5.65 mA max |
| Operating temperature range | -40 °C to +85 °C |
| Package | 24‑lead TSSOP |
| On‑chip reference voltage | 2.5 V |
The AD7367 can sample at up to 1 MSPS.
The device operates from –40 °C to +85 °C.
It is offered in a 24‑lead TSSOP package.
