Start here

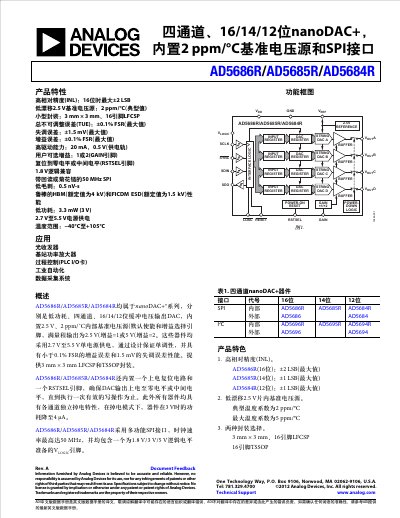

Analog Devices AD5686R/AD5685R/AD5684R Four-Channel nanoDAC+ Datasheet
The AD5686R, AD5685R, and AD5684R belong to the nanoDAC+® family of low‑power, four‑channel buffered voltage output DACs. They provide 16‑, 14‑, or 12‑bit resolution, an internal 2.5 V, 2 ppm/°C reference, and a 1.8 V‑compatible SPI interface that can run up to 50 MHz.
Typical applications include optical transceivers, base‑station power amplifiers, PLC I/O cards, industrial automation, and data‑acquisition systems. The devices are offered in ultra‑compact 3 mm × 3 mm 16‑pin LFCSP and 16‑pin TSSOP packages. This manual is written in Chinese.
Analog Devices AD568 specifications
| Resolution | 16 bits (AD5686R), 14 bits (AD5685R), 12 bits (AD5684R) |
|---|---|
| Relative accuracy (INL) | ±2 LSB (16‑bit), ±1 LSB (14‑/12‑bit) |
| Supply voltage range | 2.7 V to 5.5 V |
| Output current capability | 20 mA per channel |
| Power consumption | 3.3 mW at 3 V |
| Operating temperature range | −40 °C to +105 °C |
Source: Analog Devices AD5686R/AD5685R/AD5684R Four-Channel nanoDAC+ Datasheet
All Analog Devices AD568 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD5686R/AD5685R/AD5684R Four-Channel nanoDAC+ Datasheet 32 p
- ANALOG DEVICES AD5686/AD5684: Quad 16-/12-Bit nanoDAC with SPI Interface Data Sheet (Rev 0 2012-07-24-) 28 p
- Analog Devices AD5680 18-bit nanoDAC Datasheet 20 p
- Analog Devices AD5684R Datasheet 32 p
- Analog Devices AD568 12‑Bit DAC Datasheet 14 p
Questions answered in these manuals
What is the maximum SPI clock frequency?
The SPI interface can operate up to 50 MHz.
From: Analog Devices AD5686R/AD5685R/AD5684R Four-Channel nanoDAC+ Datasheet
How many channels does the device provide?
Each device has four independent DAC channels.
From: Analog Devices AD5686R/AD5685R/AD5684R Four-Channel nanoDAC+ Datasheet
What is the maximum output current capability?
The device provides a high drive capability of 20 mA, with up to 30 mA combined for specific channel pairs.
What are the available package options?
The devices are available in a 3 mm x 3 mm LFCSP and a TSSOP package.
What supply voltage does the AD5680 require?
The AD5680 operates from a single 4.5 V to 5.5 V supply.
How much power does the AD5680 consume in normal operation?
Typical power consumption is 1.6 mW at 5 V.
