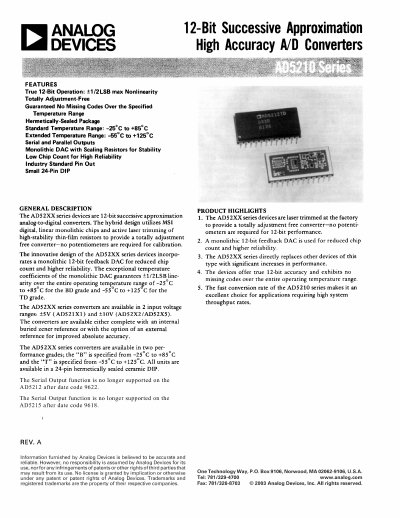

Analog Devices AD5212 12-Bit Successive Approximation A/D Converter Datasheet
The document details the AD52XX series of 12-bit successive approximation analog-to-digital converters. These devices utilize a hybrid design with monolithic digital chips and high-stability thin-film resistors to provide adjustment-free calibration. The specific model, AD5212, is part of this series known for guaranteed no missing codes over the specified temperature range.
Read onlineAnalog Devices AD521 specifications
| Resolution | 12-bit |
|---|---|
| Linearity Error, Max | +1/2LSB |
| Conversion Time (Clock = 1MHz) | 13µs |
| Operating Temperature Range (B Grade) | -25°C to +85°C |
Source: Analog Devices AD5212 12-Bit Successive Approximation A/D Converter Datasheet
