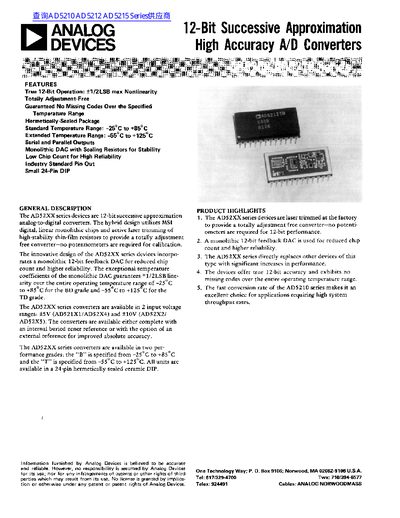

Provides an overview of the AD5210 Series products, including features and specifications.
The AD52XX series devices are 12-bit successive approximation analog-to-digital converters designed for high accuracy. They utilize a hybrid design with monolithic digital chips and active laser trimming of high-stability thin-film resistors to provide totally adjustment-free performance without potentiometers.
These converters offer true 12-bit operation with guaranteed no missing codes over the specified temperature range. The series is available in two input voltage ranges, +/-5V and +/-10V, and includes options for internal or external references. Devices are offered in 'B' grade (-25°C to +85°C) and 'T' grade (-55°C to +125°C) performance specifications.
| Resolution | 12 Bits |
|---|---|
| Linearity Error | +/- 1/2 LSB max |
| Operating Temperature Range (B Grade) | -25°C to +85°C |
| Operating Temperature Range (T Grade) | -55°C to +125°C |
| Package Type | 24-Pin DIP |
No, these devices are laser trimmed at the factory to provide a totally adjustment-free converter.
No, the devices exhibit no missing codes over the entire operating temperature range.
