Key facts
- Brand
- STMicroelectronics
- Model
- STTH2R02
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-09
Start here

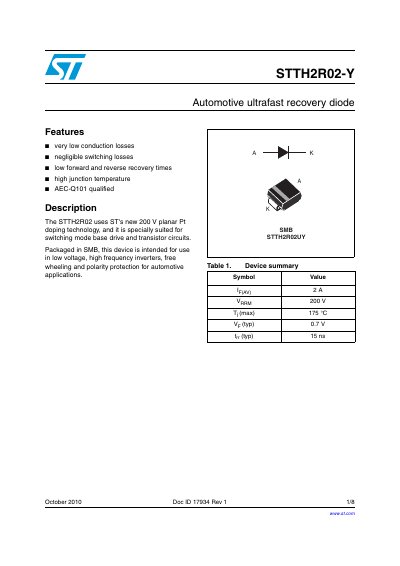

STMicroelectronics STTH2R02-Y Automotive Ultrafast Recovery Diode Datasheet
This document provides technical specifications and characteristics for the STTH2R02-Y, an ultrafast recovery diode utilizing ST's new 200 V planar Pt doping technology. The device is packaged in SMB and designed for low voltage, high frequency inverters, free wheeling, and polarity protection in automotive applications.
Read onlineSTMicroelectronics STTH2R02 specifications
| Average forward current (IF(AV)) | 2 A |
|---|---|
| Repetitive peak reverse voltage (VRRM) | 200 V |
| Operating junction temperature range (Tj) | -40 to +175 °C |
| Package type | SMB |
Source: STMicroelectronics STTH2R02-Y Automotive Ultrafast Recovery Diode Datasheet
All STMicroelectronics STTH2R02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum operating junction temperature (Tj) is +175 °C.
From: STMicroelectronics STTH2R02-Y Automotive Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature for this diode?
The device can operate at a maximum junction temperature of 175 °C.
From: STMicroelectronics STTH2R02-Y Automotive Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature for this diode?
The maximum operating junction temperature is 175°C.
From: STMicroelectronics STTH2R02 Ultrafast Recovery Diode Datasheet
