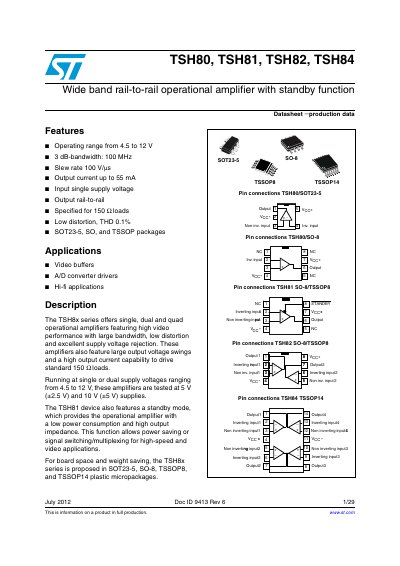

ST TSH80 TSH81 TSH82 TSH84 handbook
The document describes the TSH8x series of single, dual, and quad operational amplifiers featuring high video performance. Key characteristics include a 3 dB bandwidth of 100 MHz, a slew rate of 100 V/μs, and an output current capability up to 55 mA.
Read onlineSTMicroelectronics TSH81 specifications
| Supply voltage range | 4.5 to 12 V |
|---|---|
| 3 dB bandwidth | 100 MHz |
| Slew rate | 100 V/μs |
| Output current | up to 55 mA |
| Total harmonic distortion (THD) | 0.1% |
All STMicroelectronics TSH81 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for these amplifiers?
The amplifiers operate with a single supply voltage ranging from 4.5 to 12 V.
Does the TSH81 model feature a standby mode?
Yes, the TSH81 device features a standby mode for low power consumption and high output impedance.
What supply voltage range do the TSH80/TSH81/TSH82 operate from?
They operate from a single or dual supply voltage of 4.5 V to 12 V.
From: STMicroelectronics TSH80/TSH81/TSH82 Operational Amplifier Datasheet
Which package options are available for the TSH8x series?
The amplifiers are offered in SOT23‑5, TSSOP‑8 and SO‑8 packages.
From: STMicroelectronics TSH80/TSH81/TSH82 Operational Amplifier Datasheet
