Key facts
- Brand
- STMicroelectronics
- Model
- STPS20150C
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-09
Start here

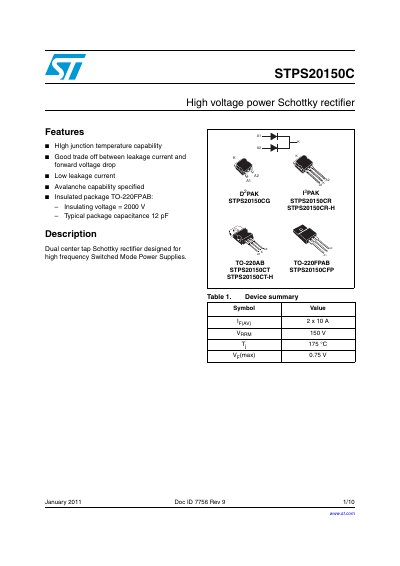

STMicroelectronics STPS20150C High Voltage Power Schottky Rectifier Datasheet
The document describes the STPS20150C, a high voltage power Schottky rectifier designed for high frequency Switched Mode Power Supplies. Key features include high junction temperature capability up to 175°C, low leakage current, and specified avalanche capability.
The datasheet provides absolute ratings such as a repetitive peak reverse voltage of 150V and forward RMS currents up to 30A (TO-220AB) or 20A per device (TO-220FPAB). It includes detailed static electrical characteristics, thermal resistance data for various packages, and ordering information for different package types including TO-220AB, D²PAK, and TO-220FPAB.
STMicroelectronics STPS20150C specifications
| Repetitive peak reverse voltage | 150 V |
|---|---|
| Maximum operating junction temperature | 175 °C |
| Forward RMS current (TO-220AB) | 30 A |
| Reverse leakage current (Typical, Tj=125°C) | 0.75 mA |
| Package capacitance (Typical, TO-220FPAB) | 12 pF |
Source: STMicroelectronics STPS20150C High Voltage Power Schottky Rectifier Datasheet
All STMicroelectronics STPS20150C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS20150C High Voltage Power Schottky Rectifier Datasheet
Is this device lead-free?
Yes, the document states that ST offers these devices in lead-free packages.
From: STMicroelectronics STPS20150C High Voltage Power Schottky Rectifier Datasheet
What is the maximum repetitive peak reverse voltage of the STPS20150 series?
The maximum repetitive peak reverse voltage is 150 V.
From: ST STPS20150CT/CG/CR/CFP HIGH VOLTAGE POWER SCHOTTKY RECTIFIERhandbook
What is the RMS forward current rating?
The RMS forward current rating is 30 A.
From: ST STPS20150CT/CG/CR/CFP HIGH VOLTAGE POWER SCHOTTKY RECTIFIERhandbook
What is the maximum reverse voltage rating?
The device is rated for a repetitive peak reverse voltage of 150 V.
From: STMicroelectronics STPS20150CT/CG/CR/CFP Schottky Rectifier Datasheet
What is the typical forward voltage drop at 10 A and 25 °C?
The typical forward voltage drop is 0.92 V under those conditions.
From: STMicroelectronics STPS20150CT/CG/CR/CFP Schottky Rectifier Datasheet
